50 Amp Terminal Blocks

Product Information

Specification

50 Amp Terminal Blocks

Also Known As:

Terminal Blocks, Electrical Parts, 50 Amp Terminal Blocks

About:

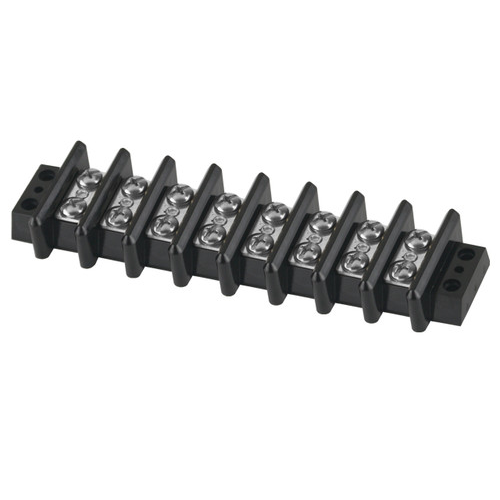

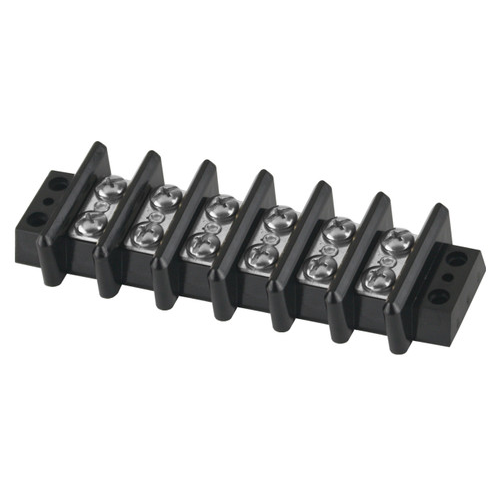

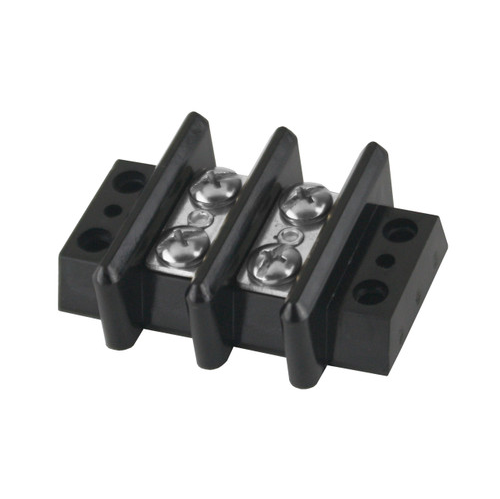

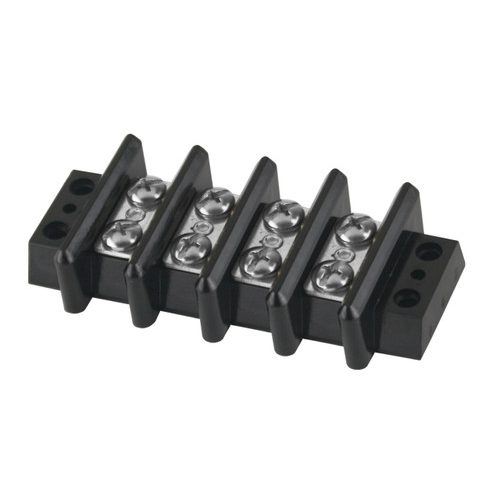

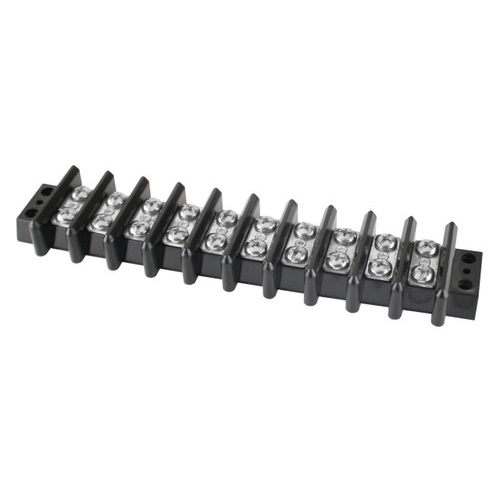

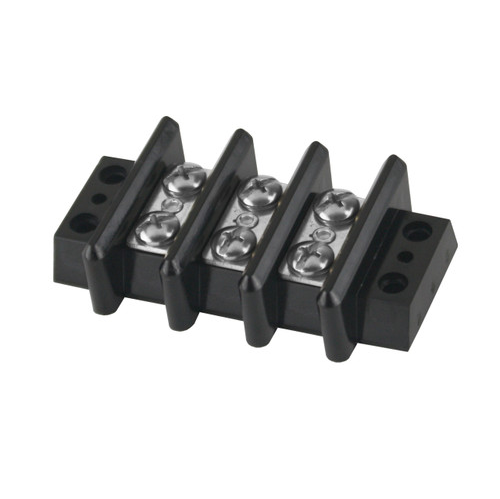

50 amp terminal blocks are built to handle multiple wires at once making them ideal for use in wire harnesses and similar applications. These flat mount 50 Amp Terminal Blocks are compatible with wire ranging from 10-8 AWG. Frequently, these terminal blocks are used in panels, electrical equipment, and wire harnesses as well. A triangular base design and the solid sealed back are designed to provide stability and corrosion resistance from moisture as well as condensation underneath the block. It is no surprise why so many marine professionals turn to 50 amp terminal blocks for their solutions.

Construction:

• Heat Resist: 143 °C (290 °F) Continuous
• Dielectric Strength: 350 Kv

Strands:

• UL Recoginzed
• CSA Certified

Features:

• Phenolic base
• Closed back
• Nickel plated brass hardware
• Eliminates splicing and simplifies wiring

Applications:

• Combines grounds in an electrical system
• Distributes voltage and power out to smaller circuits

Specifications:

• Series : 603 GP Series
• Rated Volts : 600V
• Wire Range : 10 AWG - 8 AWG
• Screw Type : 10-32 x 3/8" Phil-Slot Plated Brass
• Part No : E50TB2
