5" ANSI Flange 2260 Ultrasonic Level Transmitter EPDM Seal PP Sensor Body 2260-P-2DA-15

Product Information

Specification

Description

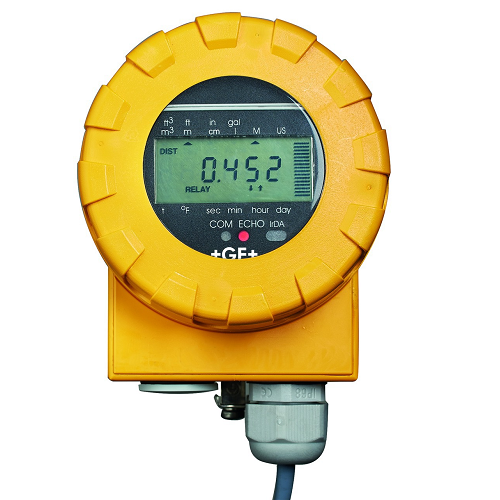

The Signet 2260 ultrasonic level transmitter is a rugged, high performance level measurement transmitter. 2260 has a transducer, processing electronics and a display/programming unit incorporated in one single housing. All type 2260 level transmitters are using established high end pulse echo transducers, which provide narrow beam angles and reliable measurement ranges up to a distance of 15 meters.

For small, stand alone tanks the transmitter provides a simple 2-wire 4 to 20 mA output, with additional power relay contacts. It can be programmed using push buttons and the large, graphic display. For large and/or multiple tank applications versions with HART interface are recommended, communicating directly with a panel mount controller or PLC. The HART protocol can easily be used for programming these versions.

Features

⦿ Outstanding signal processing software provides highly accurate measuring results

⦿ Non-contact level metering

⦿ 2-wire compact transmitters

⦿ Narrow 5° beam angle

⦿ Level, volume and open channel flow

⦿ PP or PVDF sensor body provides excellent chemical resistance

⦿ Quick-set menu for efficient installation

⦿ Plug-in keypad and display

⦿ 4 to 20mA / HART interface (Optional)

⦿ Secondary lightning protection

⦿ Fully temperature compensated electronics
