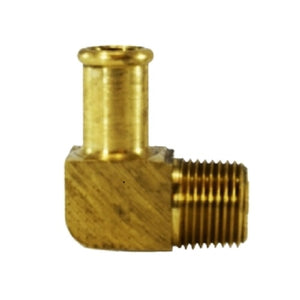

5/8" X 3/8" Bubble Barb X Mip 90 Degree Elbow Hose Barb Brass Fittings 32188

Product Information

Specification

5/8" X 3/8" Bubble Barb X Mip 90 Degree Elbow Hose Barb Brass Fittings 32188

Description:

5/8 BUBBLE BARB X 3/8 MIP 90 ELBOW

Also Known As:

Male Adapter, Brass Fitting, Pipe Fitting, Adapter, Hose Barb, 45 Degree Adapter

•  Temperature: Working Pressure Ranges From -400 F to + 1600 F at 150 PSI maximum.
• Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.
• Note: These fittings are intended for use with a hose clamp, a similar type clamp, or a crimped ferrule.
• Assembly Instructions: 1- Cut the hose cleanly and squarely to length.

1. Slide Clamp On Hose.
2. Lubricate hose. Push the hose on fitting until the hose bottoms against the stop ring or hex.
3.  Position the hose clamp as shown and secure with a screwdriver or wrench. Maintain the “A” dimension noted below for proper clamp positioning. (Diagram/Reference is to the right).
