4mm Digital Multimeter Fused Probe CT3145-0 (Pack of 10)

4mm Digital Multimeter Fused Probe CT3145-0 (Pack of 10)

Description:

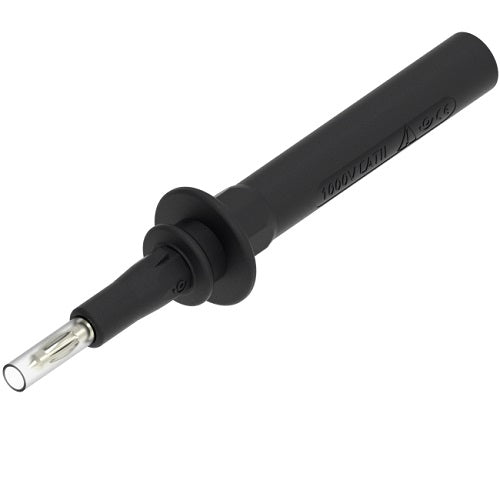

Individual standard size fused probe body with a 4 mm banana plug contact on the tip. Its fuse is rated at 10 A, 600 V.  A removable tip safety cap provides 1,000 V CAT III / 600 V CAT IV protection per IEC 61010-031.  Remove the cap to access the 4 mm contact for plugging directly into a banana jack or adding an accessory.  The tip is additionally protected by a spring loaded clear plastic sheath.

Unscrew the forward portion of the body to access and replace the 6 x 32 mm fast acting ceramic fuse. The probe body is marked with the rating of the internal fuse.

Body accepts a 4 mm sheath (safety) banana plug test lead.

Features:

• Standard size body: 115 mm (4.5") length
• Tip: Brass, Nickel Plated
• 4 mm banana plug contact: BeCu, Nickel Plated
• Safety cap matches color of probe
• Replaceable ceramic fuse: Model CT3194, 10 A/600 V, 6 x 32 mm
• Black and red colors standard; other colors available as special order
