400 Tie-point Breadboard Solderless PCB Breadboards KIT-BB400+SB400

400 Tie-point Breadboard Solderless PCB Breadboards KIT-BB400+SB400

Description:

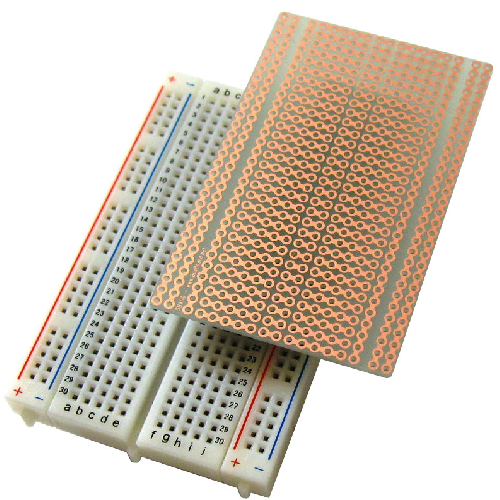

BreadBoard-400 is a solderless (plug-in) breadboard with 400 connection tie-points (i.e. 400 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB400 has a 300 tie-point IC-circuit area plus four 25 tie-point power rails. The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface. BPS BreadBoards are Lead-Free and RoHS Compliant. Finished projects can be moved to a SB400 or SB404 Solderable PC BreadBoard to make them permanent.The SB400 Solderable PC BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout. The SB400 has the same pattern and spacing as a standard 400 connection point BB400 solderless plug-in breadboard. It has a standard 5-hole strip for each IC pin, just like solderless breadboards plus 4 power rails. However, it has the advantage that soldered joints provide a more reliable long-term connection than solderless contacts. The SB400 has four power rails like solderless breadboards, plus two bonus rails for power or signals. There are bonus two-hole pads along the centerline allowing DIL (dual in-line) headers to be used. BPS prototyping boards use high-quality FR4 glass epoxy PCBs for long life, with an anti-tarnish protective coating for easy soldering. BPS boards are lead-free and RoHS compatible.

Features:

• 400 tie points total: 300 tie-point IC-circuit area plus two 50 tie-point distribution strips providing 4 power rails.
• ABS plastic body with black printed legend. Color legend on distribution strips.
• Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
• Rated at 36 Volts, 2 Amps.
• Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
• Peelable adhesive tape backing provided for attaching to a surface.
• Size: 3.3 x 2.1 x 0.3in (84 x 54.3 x 8.5mm).
• Same pattern as a standard 400 connection point BB400 solderless plug-in breadboard.
• Single-sided high-quality FR4 glass-epoxy circuit board.
• 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
• 540 holes, 0.042" holes are drilled on 0.1" (2.54mm) centers.
• 3.00 x 1.90 in (76.2 x 48.3mm), 1/16" thick (1.6mm)
