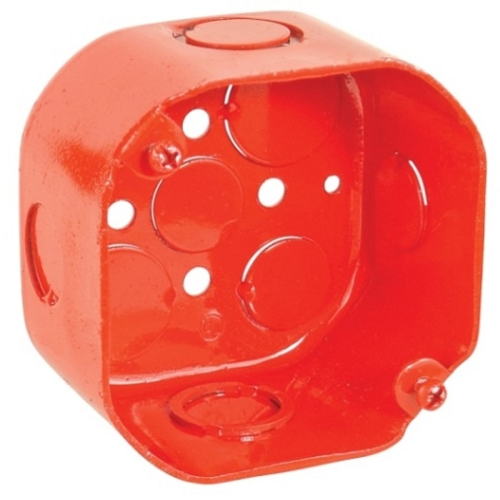

4 Inch Octagon Box 2-1/8 Inch Deep 1/2 And 3/4 Knockouts Red 54171-RED (Pack of 50)

Product Information

Specification

About:

• The box is octagonal in shape and measures 4 inches across
• It has a depth of 2-1/8 inches, which allows for sufficient space to accommodate wiring connections and devices.
• These are openings in the junction box designed to accommodate conduits with a diameter of 1/2 inch.
• These are larger openings in the junction box designed to accommodate conduits with a diameter of 3/4 inch.

Also Known As:

4" Octagon Electrical Junction Box, Octagonal Electrical Enclosure, Octagon Outlet Box, Octagon Electrical Conduit Box, Octagon Electrical Connection Box, Octagon Box.

Specification:.

• Type: Octagon Box
• Material: Powder Coated Galvanized Steel
• Product Height: 2.13 Inch
• Product Width: 3.9 Inch
• Side Knockouts: (2) 1/2", (2) 1/2" - 3/4"
• Bottom Knockouts: (2) 3/4", (3) 1/2"
• Color: Red
• UPC: 785592117045

Features:

• Painted red boxes are used for life safety wireway identification
• Combination Phillips/Slotted screw heads.
