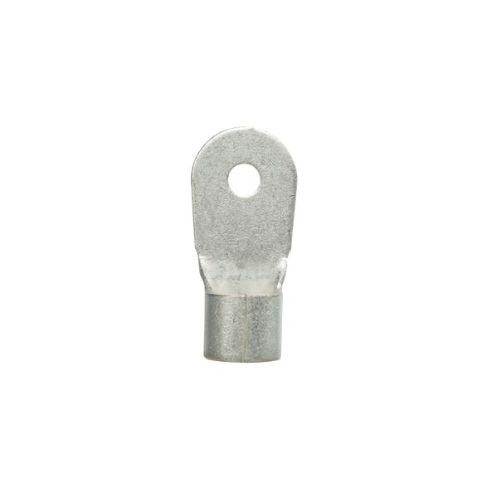

4 AWG Ring Terminal P4-38RHT6-E (Pack Of 20)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• Suitable for 4 AWG wire, providing a strong and secure connection in various heavy-duty applications.
• This terminal fits a 3/8" stud size, which is commonly used in automotive and industrial applications, ensuring a secure fit to battery posts, ground connections, and other terminal studs.
• The terminal is typically non-insulated, making it ideal for use in high-temperature environments where insulation could degrade.
Also Known As:
Ring Lug, Ring Connector, Ring Wire Terminal, Crimp Ring Terminal, Solder Ring Terminal, Cable Lug, Wire Lug, Electrical Ring Connector, Ring Terminal.
Specification:
| Product Type | Ring Terminal |
| Stud Size | 3/8" |
| Wire Rang | 4 AWG |
| Maximum Copper Conductor Size (AWG) | 4 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 2000 |
| Insulation Material | Non-Insulated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 10 |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37.1 |
| Overall Width (In.) | 0.68 |
| Overall Width (mm) | 17.3 |
| Tongue Width (In.) | 0.68 |
| Tongue Width (mm) | 17.3 |
| UPC | 074983131082 |
Features:
• Ring tongue design assures a secure connection in high vibration applications
• Nickel plated copper for temperatures up to 650°F (343°C)
• Internal barrel serrations assure good wire contact and maximum tensile strength
