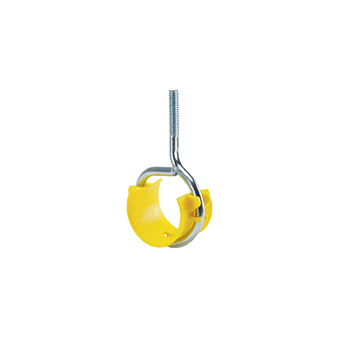

4 1/4 20 Thread Bridle Ring Saddle Assembly BR-4.0-1/4-20S (Pack of 50)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Application | Support low voltage and signal wire |
| Product Type | Bridle Ring with Saddle |
| Sub Brand | StrongHold™ |
| Color | Silver/Yellow |
| Finish/Coating | Assembly |
| Material | Zinc Plated Steel/Plastic |
| Nominal Diameter (In.) | 4 |
| Nominal Diameter (mm) | 101.6 |
| Overall Height (In.) | 6.27 |
| Overall Height (mm) | 159.3 |
| Ring Size (In.) | 4 |
| Ring Size (mm) | 101.6 |
| Standards Met | RoHS Compliant |
| Thread Size | 1/4-20 UNC Thread |
| Part No: | BR-4.0-1/4-20S |

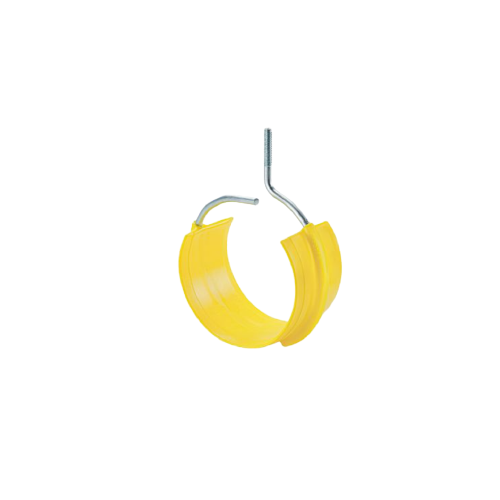

Bridle Ring Saddle Assembly
• Plastic saddles allow bridle rings to be usedfor communication cable
• Suitable for use in air handling spaces
• Available pre-installed or can be orderedseparately to be installed by the user
Download PDF Spec Sheet
