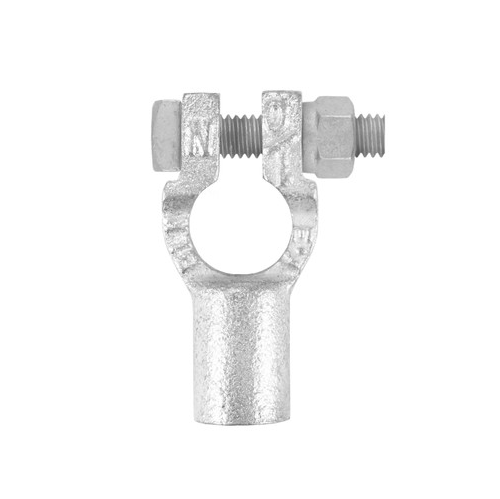

4/0 AWG Negative Straight Post Terminal

Product Information

Specification

4/0 AWG Negative Straight Post Terminal

Also Known As:

Straight Post Terminal, Negative Terminal, Battery Post Terminals, High-quality Terminals, Electro-plated

About:

Battery Post Terminals make connecting to your batteries a breeze. These durable, high-quality terminals ensure that you have the best connection possible. Straight post battery terminals are cast with 131 contact copper. They are then electro-plated with a bright tin finish. Each terminal has raised letters to indicate wire size and post type making identification seamless. For corrosion protection, a thin layer of epoxy is applied to the surface of the nuts and bolts. This coating also serves to maintain consistent torque and galvanic protection. How do you use straight battery post terminals The first step is to strip your battery cable to the proper length. Next, slide the straight battery post terminal over the exposed cable. A deep chamber chamfered entry promotes ease of cable installation. In order to properly secure the straight battery post terminal and make a solid connection, you need to crimp the post with the proper tool. For extra protection, add a piece of epoxy-lined heat shrink covering the area where the base of the terminal meets the cable insulation. Selecting the correct battery post isn't always an easy task.

Construction:

• RoHS compliant

Features:

• Chamfered entry
• Tin plated, 131 contact copper
• High corrosion resistant ultra plating
• Anti-Corrosion applied to nuts & bolts
• 3.6 times more conductive than lead lugs

Applications;

• Straight connection of battery cable to battery post

 Specifications:

• Terminal Style: Straight
• Material :131 Contact Copper
• Finish: Electro-plated, Bright Tin
• Part Number: TC-40-N
