Product Information
Specification
|
Brands |
Scotchcast |
| Cable Type | multi core, non shielded, rubber insulated reeling cables |
| Conductor Amount | Multiple, Single |
| Connection Max Outside Diameter | Multiple Conductors - 1.30 inch, Single Conductor - 0.82 inch |
| Dielectric Strength (V/mil) | 343 V/mil |
| Flame Retardant | Resin only |
| Gel Time | 17 min 73 °F (23 °C) |
| Hardness | 82 Shore A |
| Indoor/Outdoor | Both |
| Insulation Outside Diameter Range (metric) | 20.0 - 30.0 mm |
| Maximum Insulation Outside Diameter (metric) | 30.0 mm |
| Maximum Voltage | 5 Kilovolt |
| Minimum Insulation Outer Diameter (Metric) | 20 mm |
| Mining Sector Approval | Yes |
| Model | Cast Resin |
| Number of Conductors | 3 , 4 |
| Product Series | 82-B Series |
| Resin Type | SC 2131 |
| Shelf Life | 36 Month |
| Shielding Type | Non-shielded |
| Splice Type | Inline |
| Voltage | 5 kV (single), 1 kV (multiple) |
| Voltage Application | Low Voltage |
| Voltage Rating | 0.6/1 kV |
| With Screw Connectors | No |
| Part Number | 82-F2 (2131) |

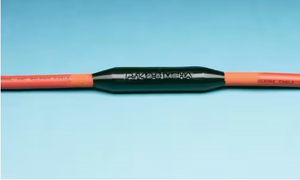

3M Scotchcast Flexible Splice 82-F2 (2131)
Description:
3M Scotchcast Flame-Retardant Electrical Insulating Resin 2131 is a two-part polyurethane resin designed to replace the cable jacket when splicing or repairing mine and portable cables. Its formulation makes it particularly suited to withstand the rugged conditions under which mine and portable cables must operate.
Key Features :
• Flame-retardant
• Bonds to most modern cable jackets
• Bonds to itself
• Tough, yet flexible (semi-flexible)
• Available in a two-part closed mixing pouch for easy mixing and pouring
• Excellent multi-purpose moisture sealing resin
• Room temperature cure
• Color: Black
• To insulate between conductors of multi-core splices operating at up to 1000 volts
• To seal the crotch or sheath when terminating multi-core cables
• Potting cable or wire encasements
• Potting cable fittings & splices
• Potting printed circuit boards
• Potting junction boxes
• Filling back shell connectors
• Potting for motor repairs
• Bonds to most modern cable jackets
• Bonds to itself
• Tough, yet flexible (semi-flexible)
• Available in a two-part closed mixing pouch for easy mixing and pouring
• Excellent multi-purpose moisture sealing resin
• Room temperature cure
• Color: Black
Resin Applications :
• To replace or repair the jacket on both single and multi-core power cables• To insulate between conductors of multi-core splices operating at up to 1000 volts
• To seal the crotch or sheath when terminating multi-core cables
• Potting cable or wire encasements
• Potting cable fittings & splices
• Potting printed circuit boards
• Potting junction boxes
• Filling back shell connectors
• Potting for motor repairs
