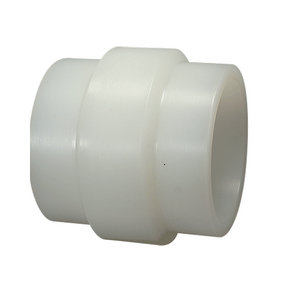

32mm Polypropylene Instrument Fitting Natural with 1/4" FPT Tap Machined 6304104

Product Information

Specification

Material	Polypropylene
Connection Type	FPT
Category	Fittings
Size	32mm
Pressure Rating	150 psi
Part Number	6304104



32mm Polypropylene Instrument Fitting Natural with 1/4" FPT Tap Machined 6304104

Description

The PolyPure Natural Polypropylene System provides a cost-effective alternative for a system up to 4" (110mm). PolyPure pipe is cleanroom produced. Fittings and valves are also produced in a class 100 cleanroom, then hot DI rinsed and individually packaged. PolyPure is available in both butt and socket fusion.

Features

• The pipe has a standard dimensional ratio of SDR 11 and is pressure rated to 150 PSI at 73.4°F for all diameter sizes ½-4
• Purity Seal Clean provides a significant reduction in leachables
• Made from 100% virgin PTFE
• Seals evenly with low bolt torques
• High dimensional stability and creep resistance
• Blowout resistant
• Exact match to pipe ID with NO GAP
• Pipe and fittings use a virgin, natural random copolymer polypropylene resin (PPr) for the pipe, fittings, and valves
• PolyPure pipe conforms to the requirements of ASTM S-2837-85 for establishing a hydrostatic design basis.
• PolyPure systems are specified and installed in a variety of high-purity applications including USP-purified water, institutional laboratory, and deionized water systems
• Joining methods: butt fusion, infrared butt fusion, socket fusion, and beaded butt fusion
• Also available on special order on special order butt fusion probe adaptor with FNPT tap, probe adaptor solid, and restraint fittings
