32A 480VAC Safety-interlocked Power Outlet 65KIAC

Product Information

Specification

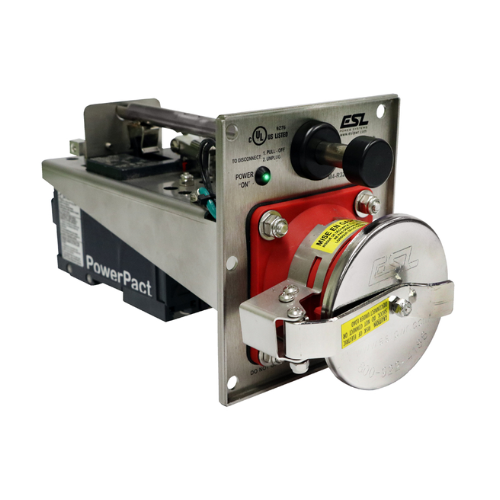

32A 480VAC UL-Listed Safety-Interlocked Power Outlet

This UL-listed safety-interlocked power outlet is designed for high-performance industrial applications, integrating a 30A circuit breaker for enhanced protection. The actuator rod allows users to conveniently turn the power on/off and reset a tripped breaker, ensuring both safety and ease of operation.

• Integrated UL-Listed Circuit Breaker:

  • 3-pole molded case breaker with a 30A trip rating

  • 65,000 AIC @ 480VAC for superior short-circuit and overcurrent protection

  • Additional trip and AIC ratings available upon request

• Direct Breaker Wiring:

  • Phase Terminals: Pressure-type screw terminals for #14 AWG - 2/0 (2.5 - 70mm²) wire

  • Ground Terminal: Supports #14 - #6 AWG (2.5 - 16mm²) wire

• Durable Stainless Steel Construction:

  • Frame, faceplate, actuator rod, snap cover, interlock mechanism, contact terminal screws, spring, and all fasteners for corrosion resistance and long-lasting performance

This rugged and reliable power outlet is built to withstand harsh environments, delivering uncompromised safety and efficiency.

Also known as:

Reefer outlets, plugs and sockets for reefer containers, reefer plug points, reefer receptacle, reefer socket outlet.

Product Information:

Features:

• UL Listed safety-interlocked power outlet containing an integral 30A circuit breaker
• Actuator rod allows user to turn on/off and reset tripped breaker
• UL Listed circuit breaker rated 65kAIC @ 480VAC provides short circuit & over current protection
• “Power On” LED indicator light (shown as energized)
• 2-piece receptacle with polyamide receptacle housing and high temp rynite insert
• Spring-loaded snap cover protects receptacle when not in use
• Interlocked replacement outlet for use in single gang or multi-gang assemblies to power ISO reefer containers

Approvals:

• UL/cUL Listed outlet
• UL 489 Listed / CSA certified molded case circuit breaker
