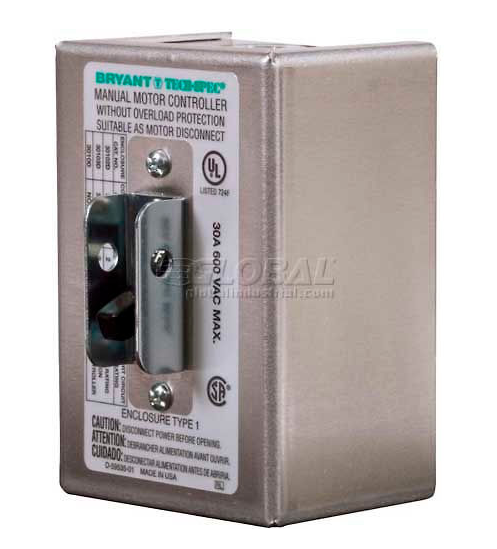

30 AMP NEMA 1 Enclosed Toggle Switch 30103D (Pack Of 5)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Depth |
2.41 in |
| Width |
3.2 in |
| Length |
4.72 in |
| 600V AC | 20 |
| 120V AC | 3 |
| Phase | 3 |
| 240V AC | 7.5 |
| Operating Temperature Range | MAX. CONTINUOUS 60 DEG. C., MIN. CONTINUOUS W/OUT IMPACT -40 DEG |
| Box Enclosure | NEMA 1 ALUMINUM |
| Short Circuit Withstand Rating As Motor Controller | 125A MAX RK5 FUSES |
| Electrical Life | 6,000 CYCLES AT RATED SWITCH LOAD |
| Terminal Accomodations | AWG MIN. #14 - AWG MAX. #10 |
| 480V AC | 15 |
| Product Type | Motor Control SW T |
| Short Circuit Withstand Rating as Motor Disconnect | 60A MAX J FUSES 10,000 RMS |
| Max Voltage | 600V AC RMS V |
| Brand | Bryant |
| Poles |
3 |
| Amperage | 30 A |
| Dielectric Voltage | 2,200V AC MINIMUM FOR 1 MINUTE V |
| Flammability Rating |
UL94HB/VO |
| Terminal Torque |
20 INCH POUNDS |
30 AMP NEMA 1 Enclosed Toggle Switch 30103D (Pack Of 5)
Description:
The NEMA1 Toggle Switch is all aluminum cover and base. Base is pre-drilled for rear or surface mounting.
