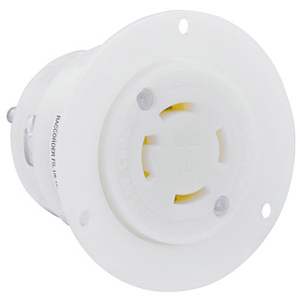

30 AMP, 125/250 VOLT, FLANGED OUTLET LOCKING RECEPTACLE, INDUSTRIAL GRADE - NEMA L14-30amp - 2716
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Brand | Black and White |
| Color | White |
| Device Type | Locking Flanged Outlet |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Body Material | Nylon |
| Grounding Screw | Brass 8-32 |
| Line Contacts | Solid Brass |
| Strap Material | Thermoplastic Nylon |
| Terminal Screws | Brass 10-32 |
| At Rated Voltage | 2 HP L-L / 2 HP L-N |
| Amperage | 30 A |
| Current Limiting | Full Rated Current |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Grounding |
| Pole | 3 |
| Voltage | 125/250 VAC |
| Wire | 4 |
| Screw Terminal Torque | 10-14 in-lbs |
| Terminal Accom | 18-10 AWG |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination | Back |
| Torque Range | 10-14 in-lbs |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Environment | Dry |
| Part Number | NEMA L14-30amp - 2716 |
Description :-
30 Amp, 125/250 Volt, NEMA L14-30R, 3P, 4W, Flanged Outlet Locking Receptacle, Industrial Grade, Grounding - WHITE
Key Features :-
- → One piece contacts reduce friction and overheating
- → Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- → Ratings and NEMA I.D. permanently marked on device
- → Industry exclusive limited lifetime warranty
Download PDF Spec Sheet
