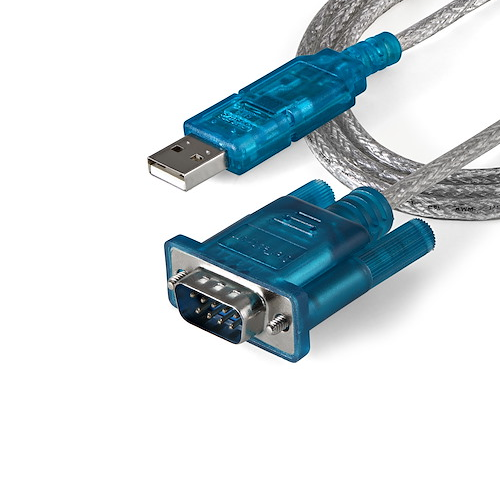

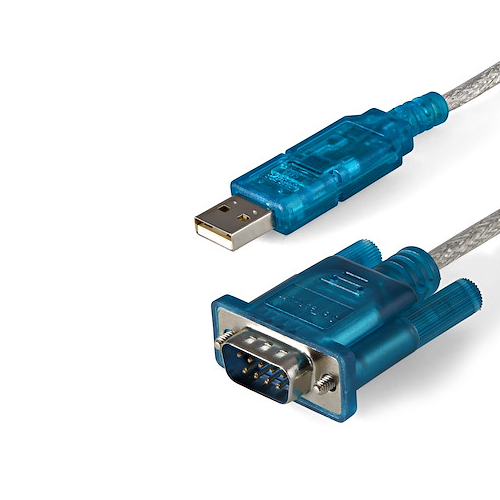

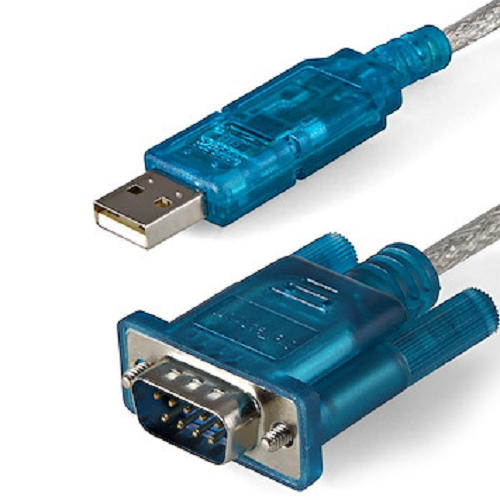

3' USB to RS232 Up to 921.6 Kbps DB9 Serial Adapter Cable

Product Information

Specification

3' USB to RS232 Up to 921.6 Kbps DB9 Serial Adapter Cable

Applications:

• Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
• Connect, monitor and control industrial/automotive sensors and equipment
• Connect bar code scanners, receipt printers and other point of sale devices
• Connect a satellite receiver, serial modem, or PDA with serial sync

Description:

The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector.

Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary.

Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.

Advantage:

• The converter chip on the USB end of the cable allows extension of the DB9 serial over much greater distances than USB extension.
• Drawing power from the USB bus saves the hassle of carrying an external power adapter for this add-on serial port.
• Extensive list of compatible operating systems makes this device perfect for almost any RS232 application

Features:

• Supports serial data transfer rates of up to 1 Mbps
• No external power needed - draws power from the USB connection
• Compatible with modems, printers, bar code scanners, servers, PDUs, and nearly any serial RS232 equipment
• Thin, lightweight design
• Easy to setup and install

Hardware:

• Warranty: Lifetime
• Ports: 1
• Interface: Serial
• Bus Type: USB 2.0
• Port Style: Cable Adapters
• Industry Standards: RS232, USB 1.1/2.0
• Chipset ID: Prolific - PL2303GC

Connector(s):

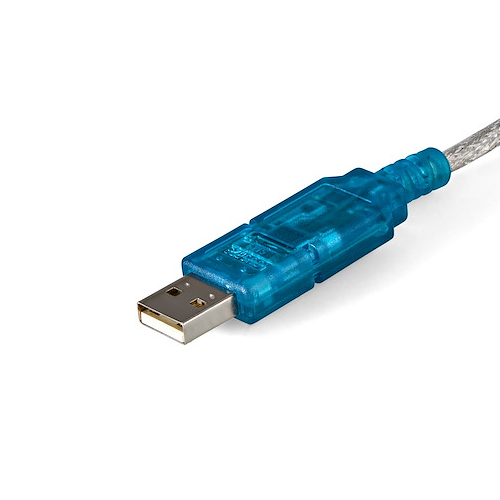

• Connector A: 1 - USB Type-A (4 pin) USB 2.0

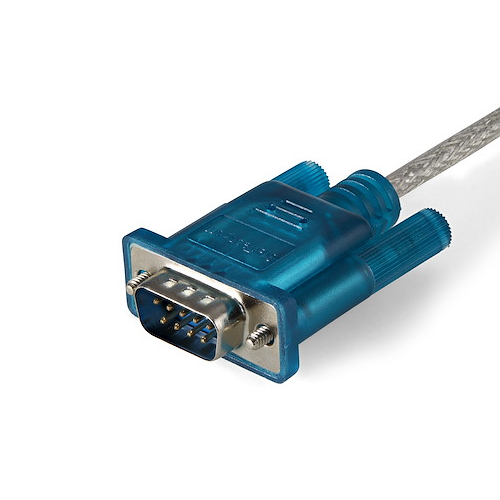

• Connector B: 1 - DB-9 (9 pin, D-Sub)

Environmental:

• Operating Temperature: 0C to 60C (32F to 140F)
• Storage Temperature: -20C to 80C (-4F to 176F)
• Humidity: 0~65% RH

Performance:

• Serial Protocol: RS-232
• Max Baud Rate: 921.6 Kbps
• FIFO: 192 Bytes

Software:

• OS Compatibility: Windows CE 4.2, 5.2, Vista, 7, 8, 8.1, 10
                                   Windows Server 2003, 2008 R2, 2012, 2016, 2019
                                   macOS 10.6 to 10.15, 11.0, 12.0
                                   Linux 2.4.x to 4.11.x
                                   LTS Versions Only
