3' Panel Mount DisplayPort Cable 4K x 2K Video Extender Cord W/ Panel Mount DP Connector Monitor Cable DPPNLFM3PW

Applications:

• Extend your DisplayPort interface and allow you screw mount it to a panel

Description:

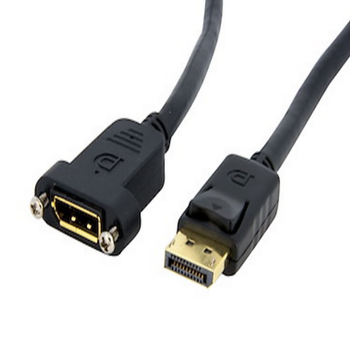

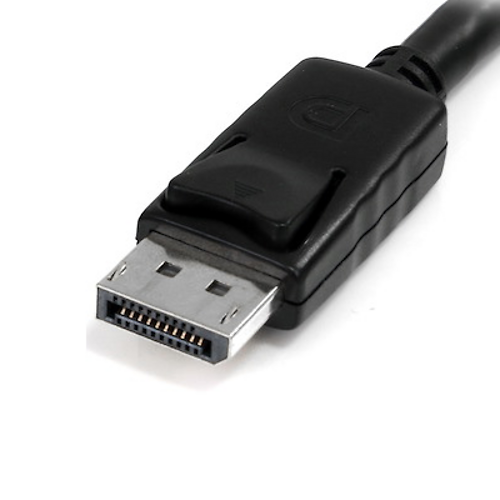

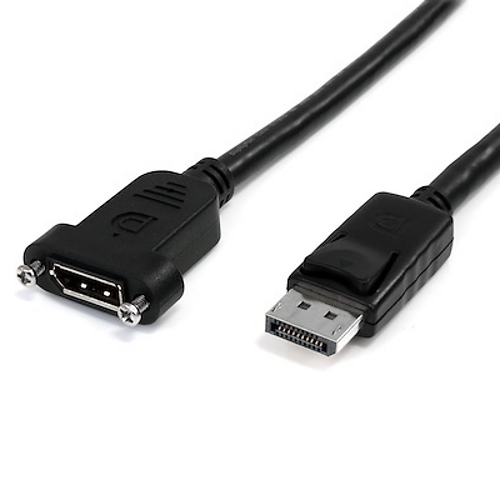

The DPPNLFM3PW 3ft DisplayPort Extension Panel Mount Cable features one DP male connector and one panel mount DP female connector, providing a well-secured, easy to access DisplayPort connection on your PC or faceplate, and allowing you to customize your systems to suit your needs. If power is required, the DisplayPort Cable uses all 20 pins and can deliver power accordingly.

Advantage:

• Provide power where necessary, using all 20 pins of the DP connectors
• Configure your systems as needed, extend your DisplayPort connection by 3ft

Features:

• PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz).

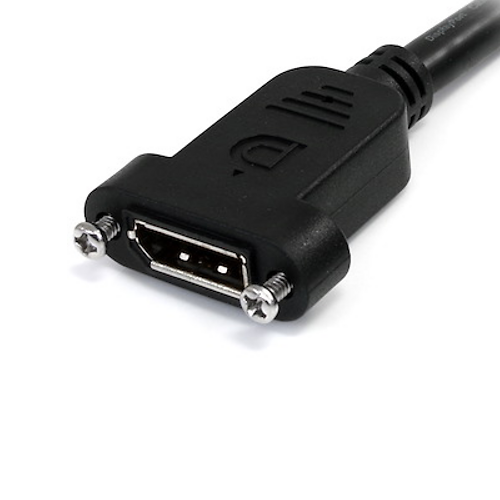

• RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
• QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio

Hardware:

• Number of Conductors: 20
• Connector Plating: Nickel
• Cable Jacket Material: PVC - Polyvinyl Chloride
• Cable Shield Material: Aluminum-Mylar Foil with Braid
• Fire Rating: CMG Rated

Connector(s):

• Connector A: 1 - DisplayPort (20 pin)
• Connector B: 1 - DisplayPort (20 pin)

Environmental:

• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Storage Temperature: -10°C to 80°C (14°F to 176°F)
• Humidity: 0 to 85% RH

Performance:

• Maximum Digital Resolutions: 4k x 2k (4096 x 2160) @ 60Hz
