3' Panel Mount DisplayPort Cable 4K x 2K Video Extender Cord W/ Panel Mount DP Connector Monitor Cable DPPNLFM3

Product Information

Specification

3' Panel Mount DisplayPort Cable 4K x 2K Video Extender Cord W/ Panel Mount DP Connector Monitor Cable DPPNLFM3

Applications:

• Extend your DisplayPort interface and allow you screw mount it to a panel

Description:

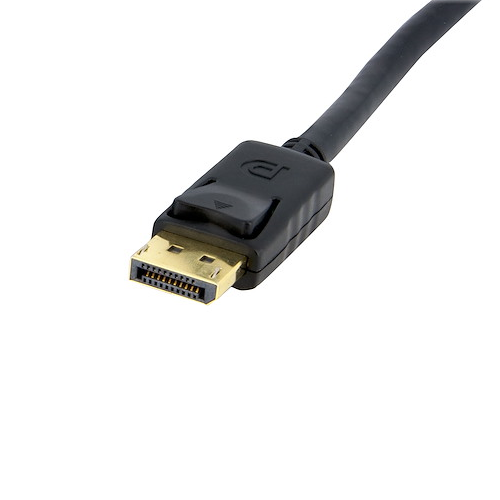

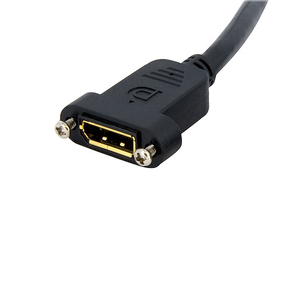

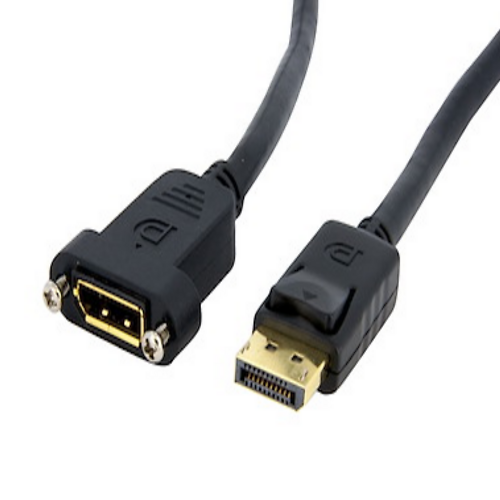

This 3ft panel mount DisplayPort cable features a DisplayPort male connector on one end, and a DisplayPort panel mount (female) molded connector on the other, providing a well-secured, easy to access DisplayPort connection on any machine port or faceplate.

Advantage:

• Allows you to install a panel mount Displayport port up to 3ft away from your video card
• Easy to use and install

Features:

• PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
• RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
• QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio

Hardware:

• Number of Conductors: 19
• Connector Plating: Nickel
• Cable Jacket Material: PVC - Polyvinyl Chloride
• Cable Shield Material: Aluminum-Mylar Foil with Braid
• Fire Rating: CMG Rated

Connector(s):

• Connector A: 1 - DisplayPort (20 pin)
• Connector B: 1 - DisplayPort (20 pin)

Environmental:

• Operating Temperature: -20°C to 80°C
• Storage Temperature: -20°C to 80°C
• Humidity: 15 to 65%
