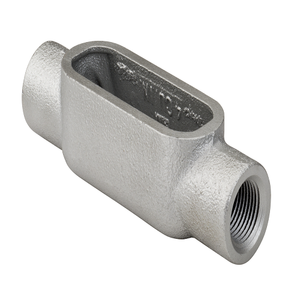

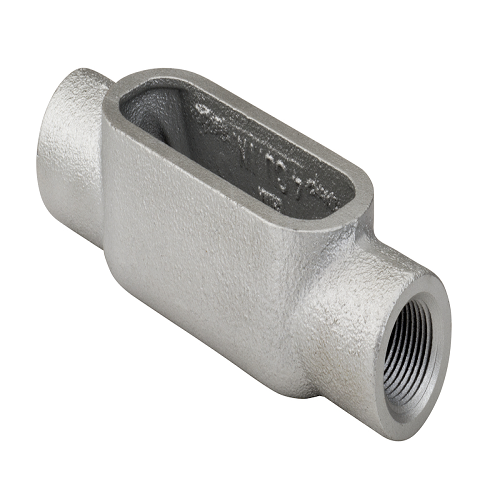

3" Form 7 Rigid C Type Gray Iron Conduit Bodies C8G7

Product Information

Specification

About :

A 3" Gray Iron Conduit Body is an essential component in electrical conduit systems, particularly for protecting and routing electrical wiring in a safe and organized manner. it's made of gray iron, a type of cast iron known for its durability and strength. This makes it suitable for industrial and commercial applications where robustness is required. The "3"" refers to the diameter of the conduit body, indicating it's designed to fit with 3-inch electrical conduits. This size is quite common in larger installations where more wiring capacity is needed. Conduit bodies come in different shapes like LB, LL, LR, T, and C, each designed for specific purposes like changing the direction of the conduit, providing pull points for wires, or facilitating inspection and access. The specific type would depend on the application. They often come with a cover and gasket to provide a secure and weatherproof seal, ensuring the protection of the wires inside.

Also known as:

3-Inch Iron Conduit Fitting, 3" Gray Iron LB Conduit Body, 3" Cast Iron Conduit Body, 3-Inch Rigid Iron Conduit Body, 3" Heavy-Duty Iron Conduit Elbow.

Specification:

Material : Malleable iron
Size : 3"
UPC : 751338869226
Part Number : C8G7

Features:

• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div.2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
