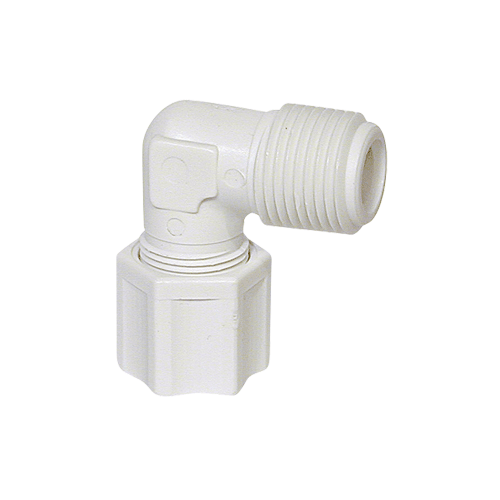

3/8" x 3/8" Male Elbow Jaco Polypropylene Stainless Steel Gripper 40-6-6-P-SG
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type of product | Male Elbow |
| Nut Type | Stainless Steel Gripper |
| Manufacturer | Jaco Manufacturing Company |
| Material | Polypropylene |
| Connection Type | Tube x MPT |
| Size | 3/8" x 3/8" |
| Thread Type | 5/8-20 |
| Pressure Rating |
220 psi |
| Maximum Recommended Service Temperature | - 30 to 215°F |
| Category | Tubing and Hose |
| Part No | 40-6-6-P-SG |
3/8" x 3/8" Male Elbow Jaco Polypropylene Stainless Steel Gripper 40-6-6-P-SG
Description:
JACO plastic fittings are available in size ranges from 1/8" through 7/8" tube O.D. in all common figurations, such as union, bulkhead, male and female connectors, male branch and male run tees, tee unions and ferrule nuts. Metric sizes are also available on a special order basis. JACO plastic fittings are constructed of either nylon, acetal copolymer, polypropylene, or polyvinylidene fluoride. JACO fittings are for use with all types of tubing, including: copper, plastic, aluminum and glass. They offer resistance to scale build-up and have an inherently low obstruction to flow, due to their smooth internal surface. Choose from the standard ferrule nut with integral sleeve or the plastic gripper for use with plastic tubing or the stainless steel gripper for use with hard surfaced tubing.
Features:
• Good electrical insulating qualities which eliminate electrolytic action that usually corrodes tubing when dissimilar metal meets a fitting
• Ability to absorb mechanical and acoustical vibrations because of the low density and softness of plastic
• Inherently low obstruction to flow, due to smooth internal surface
• Resistance to scale buildup
