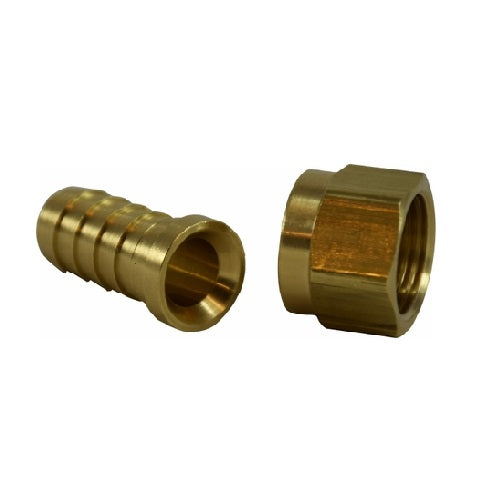

3/8" Hose X 1/2" Female 45 Degree Flare Swivel Brass Fittings 32106
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| A: | 1.81 |
| B: | 0.97 |
| HEX: | 0.87 |
| Thread: | 3/416 |
| Part Number: | 32106 |
| Approx Wt Lbs: | 0.100 Lbs |
| HOSE ID X MALE BSPT: | 3/8” x 1/2” |
| Shape: | 45 Degree elbow |
3/8" X 1/2" Hose Barb X Female 45 Degree Flare Swivel Brass Fittings 32106
Description:
3/8 X 1/2 HOSE BARB X FEM FLARE SWIVEL
Also Known As:
Male Adapter, Brass Fitting, Pipe Fitting, Adapter, Hose Barb, 45 Degree Adapter
- Temperature: Working Pressure Ranges From -400 F to + 1600 F at 150 PSI maximum.
- Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.
- Note: These fittings are intended for use with a hose clamp, a similar type clamp, or a crimped ferrule.
- Assembly Instructions: 1- Cut the hose cleanly and squarely to length.
- Slide Clamp On Hose.
- Lubricate hose. Push the hose on fitting until the hose bottoms against the stop ring or hex.
- Position the hose clamp as shown and secure with a screwdriver or wrench. Maintain the “A” dimension noted below for proper clamp positioning. (Diagram/Reference is to the right).
