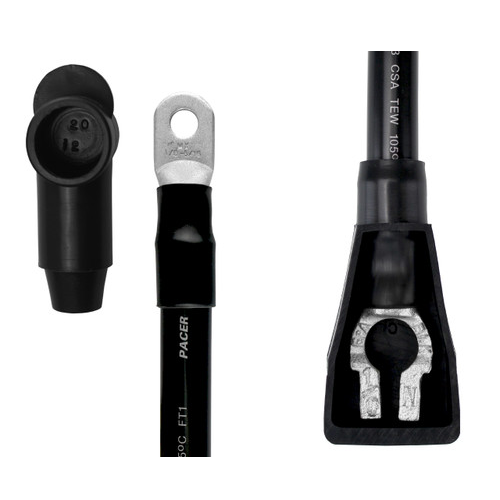

3/8" 4/0 AWG Lug with Boot and Negative Post Black Battery Cable Assemblies

Product Information

Specification

3/8" 4/0 AWG Lug with Boot and Negative Post Black Battery Cable Assemblies

Also Known As:

Lug with Boot, Negative Post with Boot, Battery Cable Assemblies, Heat Shrink

About:

4/0 AWG Black Battery Cable Assemblies are made to order. How are they made It starts by using UL approved marine cables. These cables are cut to the desired length using a precision cut and strip machine. This machine allows for accurate and repeatable cuts. After the cable has been cut to the desired length, the next step is terminating the ends. utilizes a hydraulic-pneumatic crimper that creates an unbeatable gas tight crimp. After the terminals are properly crimped, the next step is to add heat shrink. The epoxy-lined heat shrink is used to create an air and moisture tight connection. This process creates the highest quality battery cable assemblies. These assemblies are so well designed that they often outlive the battery itself. constructs 4/0 AWG black battery cable assemblies with the boater in mind. They are built to be easy to bend and route while offering excellent durability and flexibility. They are also built to withstand the harshest marine conditions possible. They are resistant to Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture.

Contraction:

• Conductor: Annealed fine stranded tinned copper ASTM B172 Class K
• Insulation: -20 °C to 105 °C Flexible color coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600-V
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture

Stands:

• UL Standard 1426 BC-5W2
• AWM 1232/1284
• MTW, CSA: TEW
• ABYC: E-11.16
• Coast Guard: 33 CFR part 183 Subpart 1
• Exceed UL 486 and MIL-T-7928

Features:

• UL Approved Battery Cable (Type III Stranded Tinned Copper)
• Epoxy Lined Heat Shrink
• Custom Lengths and Configurations Available
• Easy to bend and route
• Excellent flexibility with the durable properties of PVC

Spacification:

• AWG: 4/0
• Cond. Stranding: 19x111/0.0100
• Nom. Ins. Thickness: 0.080
• Nom. O.D.: 0.780
• Nom. Circular Mils: 210900
• Nom. MM2: 106.9
• Part No: B40B
