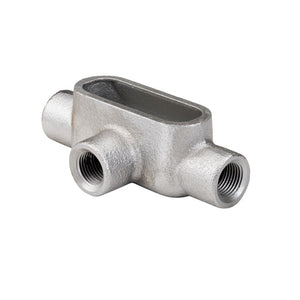

3/4" T Type Rigid Conduit Bodies T2G7 (Pack of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | T Type Rigid Conduit - Form 7 |
| Size | 3/4" |
| Wire Size | 6 AWG |
| Material | Gray iron |
| Finish | Zinc plated |
| UPC | 751338869363 |
| Part Number | T2G7 |
1/2" T Type Rigid Conduit Bodies
Description
T Type Rigid Conduit - Form 7 allows 3-way inline access in conduit systems, provides easy access for splicing and pulling, and can correct and change the direction of conduit runs. Smooth, rounded integral bushings in hubs offer protection for conductor insulation. Excellent ground continuity and corrosion resistance; lightweight aluminum construction; cover and watertight gasket ensure weatherproof installations.
Features
• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div. 2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
Application
• Serves as a pull outlet for conductors being installed.
Certification
• UL Standard: UL 514A and UL 514B
• Fed. Spec: A-A-50563
• NEMA: FB 1
Download PDF Spec Sheet
