3/4" Strain-Relief/Scaling Connector For Building Cable Premises Splice Cabinet Accessory Watertight Connector A0402798

Product Information

Specification

About :

The FiberManager system premises splice cabinet (PSC) is designed to manage splicing between optical fiber cables located in customer premises sites, small central offices, huts and CATV headends, or in exterior locations such as outside plant cabinets or pedestals. The PSC is space-efficient, easy to install and can be wall-mounted or installed in a unistrut or 23-in frame.

Splice cassettes accommodate fusion, QNC, heat-shrink fusion, mass fusion and mechanical splices. The splice cassette is designed to maintain a minimum fiber bend radius of 1.5 in (380 mm) throughout. Slack fiber and tubing is stored inside each module so that any module can be removed from the cabinet for splicing or maintenance without disturbing the others. The internal guides are carefully engineered to provide fiber management of the bend radius throughout the cabinet, ensuring a simple and secure installation without congestion.

Each PSC accommodates up to six cables and six splice cassettes for up to 144 fiber splices in a rugged, waterresistant cabinet that is designed for easy access and reentry. Splice cassettes and watertight connectors are ordered separately. Fibers are organized and protected in FiberManager system splice cassettes that permit ready identification and access to all splices.

Specifications :

Product Number : A0402798
EAN Code : 4056418000985
Product Type : Centrix
Accessory Type : PSC
Fiber Category : Single-mode (OS2)
Application : Carrier Networks,  Central Office
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Temperature Range, Operation : -40 °C  to  70 °C    (-40 °F  to  158 °F)
Number of Ports : 12
Housing Type : Wall-Mountable Hardware
Housing Color : Green
Adapter Type : E2000

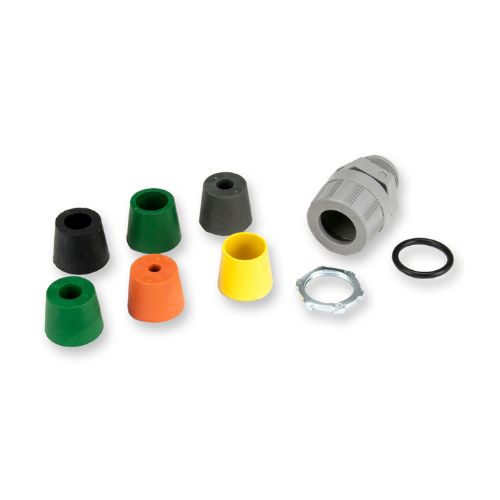

Package Contents : "3/4-in Watertight Connector with five different grommet inserts, accommodates cable diameters 0.187 - 0.812"

Features :

• Easy access for maintenance

• Provides mechanical protection of fibers

• Convenient and quick installation

• Eliminates congestion or disturbance to adjacent fibers when re-entering the unit
