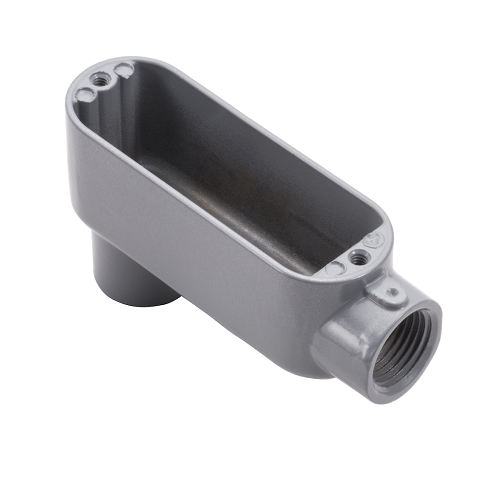

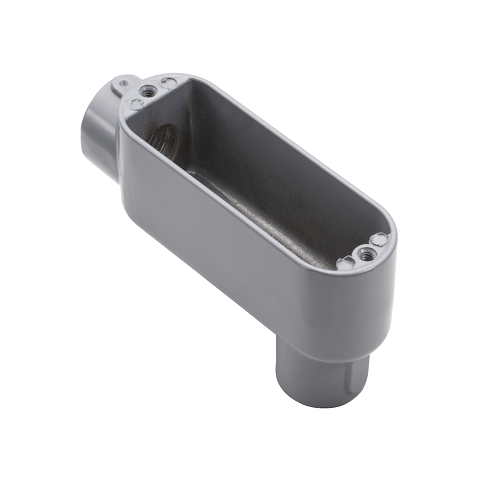

3/4" EMT And Rigid LB Type Conduit Bodies LB2SS (Pack of 40)

Product Information

Specification

About :

The 3/4" size indicates the internal diameter of the conduit. It is usually made of galvanized steel to provide durability and protection against physical impact and corrosion. The 'LB' designation refers to the shape of the conduit body, which is an elbow-like component with a removable cover. This shape allows for easier wire pulling and for changing the direction of the conduit run. It's designed for use with both EMT and rigid conduits. This fitting is typically used where the conduit changes direction sharply, like in corners, and allows for easy access to the wires for maintenance or future modifications. These fittings are generally manufactured to comply with specific industry standards like those set by the National Electrical Manufacturers Association (NEMA) or Underwriters Laboratories (UL).

Also known as:

3/4 Inch Electrical Metallic Tubing, 90-Degree LB Conduit Body for 3/4" Metal Conduit, Threaded LB Conduit Body for 3/4" EMT/Rigid Pipes, 3/4" Rigid Metal Conduit.

Specification:

Material : Powder Coated Die-Cast Copper Free Aluminum
Height : 2.37 Inch
width : 1.48 inch
UPC : 751338208520

Features:

• Threaded LB type
• NPT tapered hubs
• Suitable for use in concrete
• Suitable for use in wet locations use with threaded rigid metal conduit only
