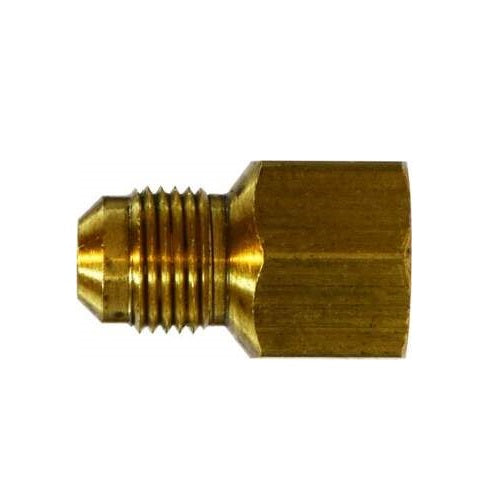

3/16" X 1/8" Male Flare X Female Adapter SAE 45 Degree Brass Fittings 10227
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| A: | 0.97 |
| Hex: | 0.56 |
| Part Number: | 10227 |
| Approx Wt Lbs: | 0.290 lbs |
| Male Flare X Female Nptf: | 3/16” x 1/8” |
| Note: | SAE# 010103 |
| Shape: | Straight/Connector |
3/16" X 1/8" Male Flare X Female Adapter SAE 45 Degree Brass Fittings 10227
Also Known:
3/16 X 1/8 MALE FLARE X FIP ADAPTER
Typical Application:
Low-Pressure Air, Fuel, Lube, and Oil Lines
• Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI. Advantages: Easy assembly. No clamps are needed!!
• Assembly Instructions
1- Lubricate insert.
2- Hold the hose at an angle to insert over the first barb.
3- Continue to push straight on until the hose is seated under the protective plastic cap. Keep hands back from the hose end area so that hose can expand.
• Disassembling Instructions
1- Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2- Bend hose and remove with a quick pull.
