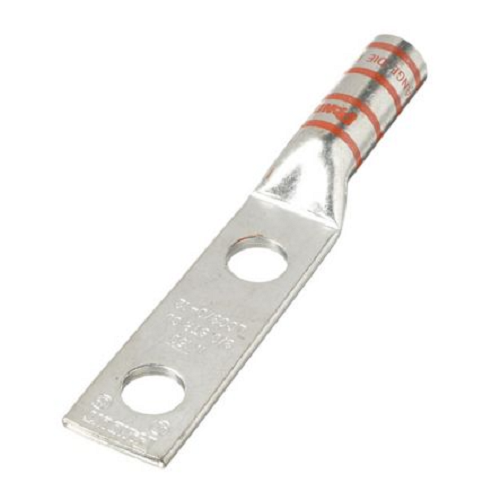

3/0 AWG Copper Compression Connectors Lugs Orange LCC3/0-12-X (Pack of 10)

Product Information

Specification

About:

• The 3/0 AWG Copper Compression Connectors Lug is a robust, high-quality electrical connector designed for use with 3/0 AWG (American Wire Gauge) copper conductors. These lugs provide a reliable and efficient electrical connection, making them ideal for various applications such as power distribution, grounding, and bonding in both residential and commercial installations.
• Constructed from high-purity copper for superior conductivity and corrosion resistance. Features a standard barrel design that ensures a secure and tight fit onto the wire, minimizing resistance and improving efficiency.
• Provides a secure and stable electrical connection, reducing the risk of failures and downtime. High conductivity and low resistance ensure efficient power transmission and minimal energy loss. Robust design and high-quality materials ensure long-term performance even in demanding environments.
• Use a suitable crimping tool to compress the lug onto the wire. Ensure the crimping tool is calibrated for 3/0 AWG connectors to achieve a proper crimp.

Also Known As:

3/0 AWG Copper Cable Lug, 3/0 AWG Copper Crimp Lug, 3/0 AWG Copper Terminal Lug,
3/0 AWG Copper Compression Terminal, 3/0 AWG Copper Electrical Lug, 3/0 AWG Copper Wire Connector, 3/0 AWG Copper Compression Connector, 3/0 AWG Copper Crimp Connector, 3/0 AWG Copper Power Lug, 3/0 AWG Copper Ground Lug.

Specification:

Features:

• Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.
• Tin plated to inhibit corrosion.
• Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection.
• Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance.
• Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments.
• American bureau of shipping approved.
• Tested by Telcordia meets NEBS level 3.
• 320u in tin-plating meets ASTM B545-97, Class C.
