2U Adjustable Rackmount DIN Rail Kit Steel Fits All Standard 19" Racks With Top Hat/Mini/G Rails

Product Information

Specification

2U Adjustable Rackmount DIN Rail Kit Steel Fits All Standard 19" Racks With Top Hat/Mini/G Rails

Applications:

• Install DIN Rail mountable hardware into a standard 19" rack or cabinet

• Two ADJDINKIT's can be used in the same U height, facing each other and mounted on both front and back rails

Description:

The ADJDINKIT Adjustable Rack Mount DIN Rail Kit with Top Hat/Mini/G Rails makes mounting your DIN-rail equipment in a 19-inch server rack/cabinet or wall plate simple, without wasting space due to special bracket requirements for each piece of equipment. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

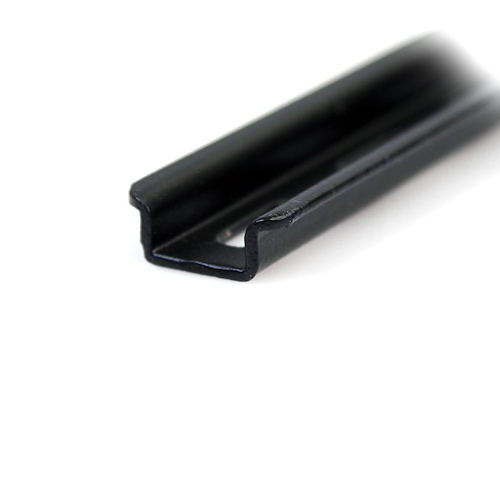

This 19-inch DIN Rail Mounting Kit includes the three most commonly used DIN rail systems: Top-Hat, Miniature Top-Hat, and G-Type.

 Features:

• Includes three types of DIN rails: Top-Hat, Miniature Top-Hat, and G-Type
• Includes three types of DIN rails: Top-Hat, Miniature Top-Hat, and G-Type
• Fits all standard 19" racks, Max weight capacity 27.5 lb [12.5 kg]
• Fits all standard 19" racks, Max weight capacity 27.5 lb [12.5 kg]
• TAA compliant for GSA Schedule purchases
• TAA compliant for GSA Schedule purchases
• Meets ANSI/EIA RS-310-D standards
• Meets ANSI/EIA RS-310-D standards
• Occupies 2U of rack space
• Occupies 2U of rack space
• Adjustable depth
• Adjustable depth
• Constructed from solid cold press steel
• Constructed from solid cold press stee

Hardware:

• Warranty:  Lifetime
• Frame Type:  Steel
• U Height:  2U
• Cable Management: No

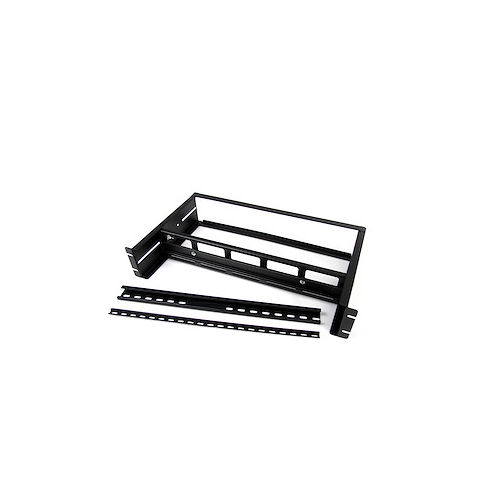

What's in the Box:

• Included in Package:

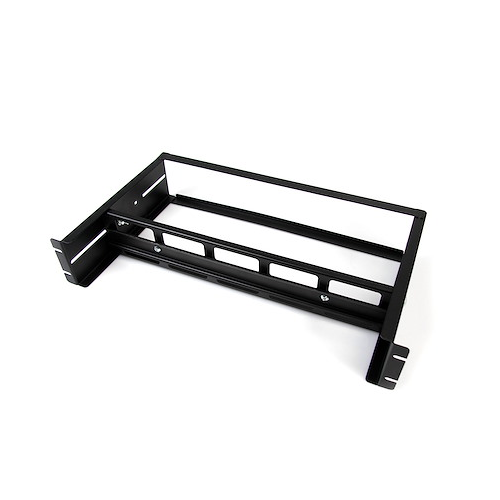

1 - Din Rail mounting brackets
1 - Top-Hat Din Rail
1 - Miniature Top-Hat Din Rail
1 - G-Type Top-Hat Din Rail

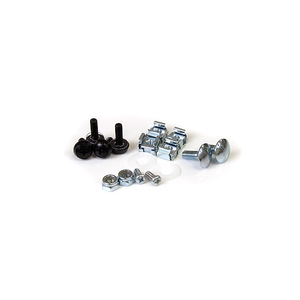

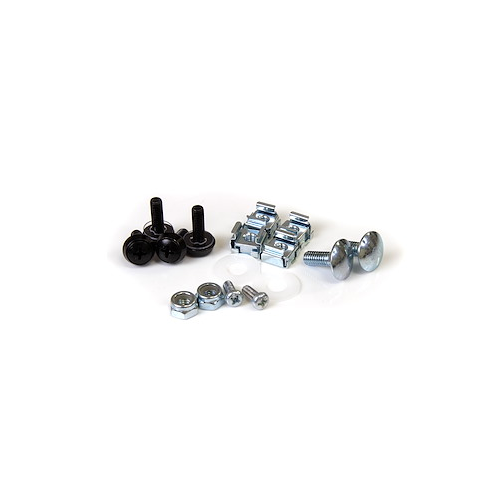

1 - Package of M5 screws and nuts (4 each)
2 - Carriage Bolts
2 - DIN rail mounting Screws
2 - Wing Nuts
4 - Plastic Washers
