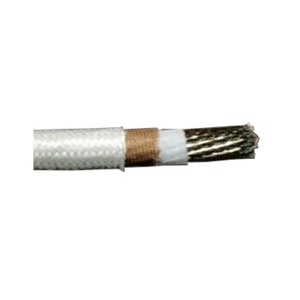

26 AWG 19/38 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/7-26

Name: 26 AWG 19/38 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/7-26
Brand: Nassau National Cable
SKU: 26-awg-19-38-stranded-nickel-coated-copper-fep-polyimide-fep-tape-200-c-600v-aerospace-cable-m81381-7-26
Availability: InStock
Rating: 4.93 (7912 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU:

Select a Gauge

26 AWG 19/38 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/7-26

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $0.00 /FT
Sale price: $0.00 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

26 AWG 19/38 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/7-26

Allowable Ampacity for 26 AWG 19/38 Stranded Nickel Coated Copper FEP / Polyimide / FEP Tape 200°C 600V Aerospace Cable M81381/7-26: 100 Amps

Applications:

• Aerospace applications, where a high temperature rating and resistance to abrasion and solvents is necessary.
• This specification is highly reliable and offers excellent thermal stability.

Also Known as:

M81381/7 Cable, Military Wire, Polyimide Cable, FEP Cable, Nickel Coated Copper Cable, Mil-Spec Cable, Aerospace Cable

Description:

• Conductor: Stranded silver-coated copper
• Insulation: Two layers of (FEP / polyimide / FEP tape) with a polyimide coating, color coded
• Temperature rating: 200°C
• Voltage rating: 600 volts

Specification:

• AWG: 26
• Stranding: 19/38
• Nom. Diameter of Conductor: 0.020 inches
• Nom. O.D: 0.032 inches
• Weight: 0.0011 lbs
• Part Number: M81381/7-26

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
