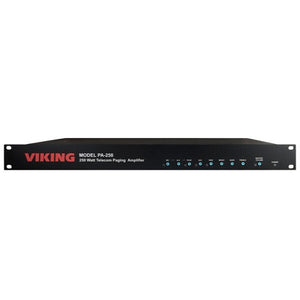

Viking PA-250 – 250 Watt Telecom Paging Amplifier
About :
The PA-250 is a compact 1U rack-sized amplifier designed to power up to 250 70V speakers or paging horns. Its high-efficiency design generates less heat, is more reliable, and costs less than competitors. The 70V system allows for longer speaker runs, smaller gauge wires, and independent speaker volume control. It supports connections to various analog telecom interfaces, including Paging Port, Trunk Input, FXO, and FXS, and includes a direct microphone input for paging. Additional features include inputs for Background Music and Aux, multiple chime options, and individual level controls with LED indicators for each input. The system also offers touch-tone programming for various settings and priorities.
Also Known As :
Amplifier, Paging Amplifier, Voice Paging Amplifier, Audio Paging Amplifier, Paging Audio Booster, Paging Signal Amplifier
Specification :
|
Paging Unit Type |
Amplifier |
| Power | 100V to 240VAC 50 to 60Hz |
| Environmental | 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity |
| Power Cord | Dual IEC C7 plugs “Y” Power Cord included |
| Paging Output | Capable of driving 250 watt load of 70V speakers |
| Talk Battery | 42V DC |
| Connections | (1) 3.5 mm (1/8″) audio jack, (22) removable cage clamp screw terminals, (2) IEC C8 AC power inlets |
Core Features :
• Powerful 70V amplifier drives up to 250 Watt load
• Page from any analog telecom port, or a direct microphone
• Auxiliary and Background Music inputs
• Individual and Master volume controls
• Bass and Treble controls
• LEDs show audio level and activity
• Programmable input priorities
• Chose between 3 different chime sounds
• Provides Loud Ringing / Night Bell
• Night Transfer switch input
• 600 Ohm output to drive additional amplifiers
• Adjustable Automatic Level Control
• Peak limiter and multiple protection modes
Download PDF Spec Sheet
