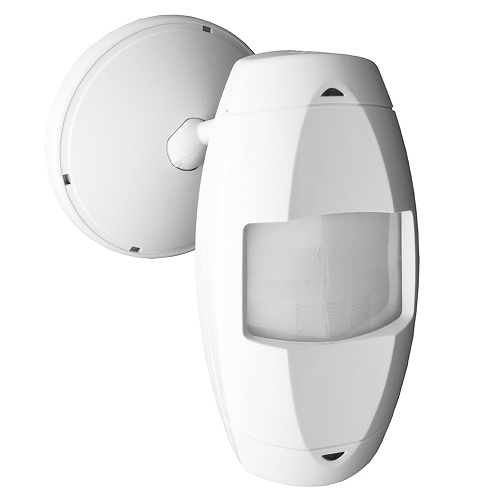

24V Occupancy Sensor Wall Mount Isolated Relay White OSWHB-RIW

Product Information

Specification

About:

• Occupancy Sensor uses ultrasonic sensing for maximum motion sensitivity and infrared sensing for highest lights-off reliability.
• Specifically designed for long, relatively narrow spaces such as warehouse aisles and corridors, the OSWHB-RIW Occupancy Sensor provides high sensitivity and long range detection.
• Additionally, the sensor is designed with an isolated relay contact, enabling the sensor to interface with other systems.

Also known as:

Motion Sensor Wall Mount , Motion Detector Wall Mount , Presence Detector Wall Mount, Human Presence Sensor, Occupancy Sensor Wall Mount, Wall Mount.

Specification:

• Sensor Type: Wall Mount
• Relay Type: Isolated Relay
• Technology: Passive Infrared
• Voltage: 24V
• Color: White
• UPC Code: 078477553725

Features:

• Combines PIR Technology with a microprocessor based digital architecture. By eliminating false triggering, the sensor provides a trouble-free "install and forget" solution for lighting control
• Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation, and long term performance
• Adjustable swivel neck rotates 80 degrees vertically and 60 degrees horizontally. Can be used for ceiling or wall mounting
• Ambient light override prevents lights from turning on when there is ample natural light
• Self-Adjusting delayed-off time interval settings for 30 seconds to 30 minutes.
• Compensates for real-time occupancy patterns- preventing unnecessary on/off switching
• Non-volitile memory preserves all automatic and manual settings during power outages.
• Fast, simple installation using 3 color-coded low-voltage wires and a single mounting post
