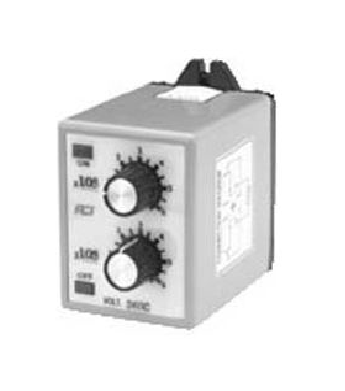

240 VAC Advance Controls Repeat Cycle Timer 0-60 min SPDT 104235

Weight	.4 lbs
Mounting Location	8 Pin Octal Socket
Manufacturers Part Number	104235
Operating Temperature	+15ø - +120ø F ( - 10 - +50ø C)
3 Phase 230V AC	0.1 Sec. Max
Input Frequency	250,000 Cycles
1 Phase 230V AC	1%
Brand	Advanced Controls
Coil Voltage	240 VAC V
1 Phase 120V AC	10%

Description:

The ACI twin setting repeat cycle timer f.4 lbseatures two timers in one case, acting as a continuously functioning repeat cycle timer. The twin setting repeat cycle timer allows independent setting of both "on" and "off" time. This provides the needed flexibility required for many timing applications. When power is applied to the timer coil, the lead timer immediately begins its time delay. Once the lead timer's delay is reached, the relay contacts transfer and remain transferred until the lag timer's delay setting is reached. The relay contacts are released, both timers are reset and the timing cycle automatically begins. Both the lead and the lag timer can be set at any point from zero to full scale by adjusting the twin knobs. Any pattern of relay contacts "ON" and "OFF" can be achieved.
