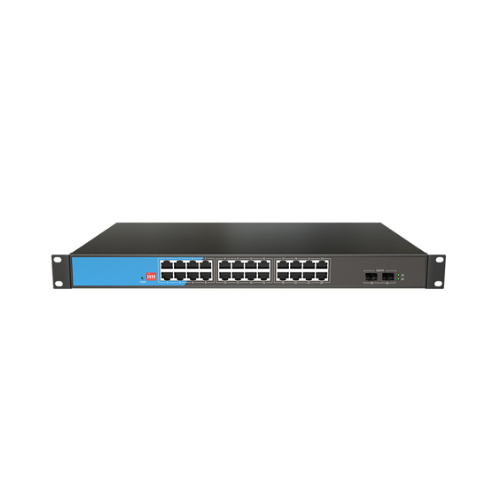

24-Ports Non Managed Full Gigabit PoE 100-240V 50/60Hz Power Commercial Switch S200-26G-S2-ACR
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Description :
This commercial switch is equipped with 24 ports and supports non-managed functionality, ensuring ease of use and plug-and-play setup. Each port offers full Gigabit Ethernet capabilities, providing high-speed connectivity for all connected devices. The switch supports Power over Ethernet (PoE), making it ideal for powering devices such as IP cameras, VoIP phones, and wireless access points directly through the Ethernet cables. It operates on a wide power range of 100-240V and supports both 50Hz and 60Hz frequencies, ensuring compatibility with various power systems worldwide. This makes it a versatile solution for a variety of commercial networking needs.
Specification :
|
Provider Mode Ports
|
|
|
Fixed port
|
24*10/100/1000 Base-T +2* 1000Base-X
|
|
Power interface
|
AC220V
|
|
LED Indicators
|
PWR，link/active ,speed(1000M)
|
|
Optical fiber interface
|
SFP
|
|
Cable type&Transmission distance
|
|
|
Twisted-pair
|
0-100m
|
|
Mono-mode optical fiber
|
20/40/60/80/100KM
|
|
Multimode optical fiber
|
550M
|
|
Network Topology
|
|
|
Ring topology
|
No Support
|
|
Star topology
|
Support
|
|
Bus topology
|
Support
|
|
Tree Topology
|
Support
|
|
Electrical Specifications
|
|
|
Input voltage
|
AC 100-240V 50/60Hz
|
|
Total Power consumption
|
≤15W
|
|
PoE
|
|
|
PoE : IEEE802.3af/at, Single port max 30W
|
|
|
PoE Pin： 1/2 3/6
|
|
|
Smart PoE: When the switch detective the connect PD does not support PoE, Data transfer only
|
|
|
PoE Power：300W /400W Optional
|
|
|
Switch Specification
|
|
|
Switching capacity
|
52G
|
|
Packet forwarding rate
|
38.6Mpps
|
|
MAC address table
|
8K
|
|
Buffer
|
4.1M
|
|
Forwarding delay
|
<10us
|
|
MDX/MIDX
|
Support
|
|
Environment
|
|
|
Operating temperature
|
-10℃~+50℃
|
|
Storage temperature
|
-40℃~+70℃
|
|
Relative humidity
|
5%~95% 不Support non-condensing
|
|
Thermal methods
|
Fan less design
|
|
MTBF
|
100,000 hours
|
|
(EMC&INGRESS PROTECTION)
|
|
|
Surge protection of Ethernet port
|
IEC 61000-4-5 Level 33/2KV10/700us
|
|
DIP
|
IEC 61000-4-11 Level3 10V
|
|
ESD
|
IEC 61000-4-2 Level 4 8K/15K
|
|
Free fall
|
0.5m
|
|
Mechanical Dimensions
|
|
|
Product size
|
440*285*44mmLxWxH
|
|
Installation Method
|
Rack and Desktop
|
|
Weight
|
3.5KG - 7.7162 Lbs
|
|
Accessories
|
|
|
Accessories
|
Cable & Manual
|
