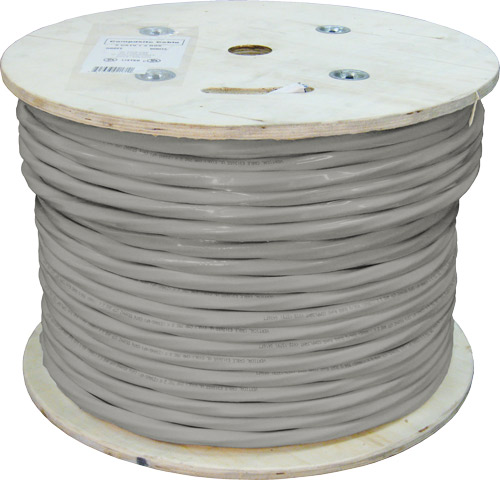

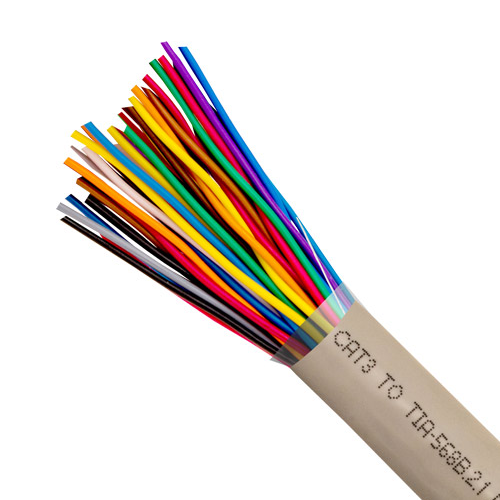

24 AWG 50 Pair Gray Solid Bare Copper UTP CAT3 Cable

Product Information

Specification

24 AWG 50 Pair Gray Solid Bare Copper UTP CAT3 Cable

Description:

Category 3 F/UTP Cable, 50-Pair, Solid Bare Copper.

Features:

• Suitable for Telephony Communication
• 50 Pair – Cabled together with varying lays
• 24 AWG Solid Bare Copper Conductors
• PE Tape, Rip Cord
• ETL CM Verified, RoHS Compliant

Electrical Characteristics:

• Impedance (±15Ω) 100
• Max D-C Resistance of each Core (Ω/km) ≤105
• Insulation Resistance (DC500V Charged 1 Min) (ΩKm) ≥1500
• Voltage Endurance (V/Min) DC 500
• The average Imbalance of D-C resistance upon cores ≤2.0%

Mechanical Characteristics:

• Test Object Jacket
• Test Material PVC
• Before Tensile Strength (Mpa) ≥13.8
• Aging Elongation (% ≥100
• Aging Condition (ºCxhrs) 100x168
• After Tensile Strength (Mpa) ≥85% of unaged
• Aging Elongation (%) ≥50% of unaged
• Cold Bend (-20±2ºC x 4 hrs) No Crack

Conductor Soft Annealed Solid Bare Copper:

• Dia. (±0.008mm) 0.483
• Insulation HDPE
• Average Thickness (mm): 0.18
• Min. Point Thickness (mm) 0.17
• Insulation Dia. (±0.05mm) 0.86
• Twisted Pair Dia. (±0.05mm) 1.70

Cable Core 2x25 Twisted Pairs:

• Total Mylar Spiral (%) ≥125

Jacket PVC:

• Assembly Diameter (±1.0mm) 1
• Min. Point Thickness (mm): 0.90
• PET Tape: Yes
• Rip cord: Yes
