24 AWG 4C Nickel Coated CU Shielding Crosslinked ETFE Tefzel jacket Cable
Description:

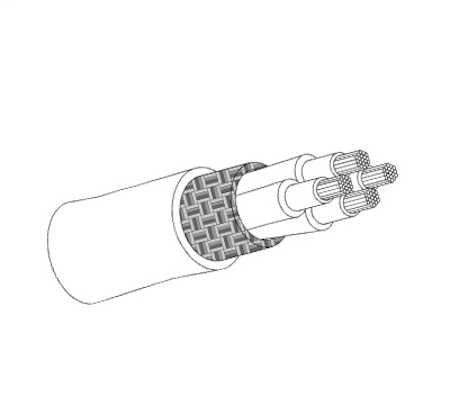

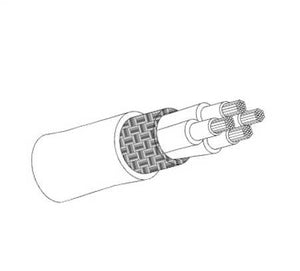

M27500-24SN4N23 is a 4 conductor cable with NICKEL COATED Cu ROUND shielding and Crosslinked Tefzel jacket with an M22759/42 inner conductor. M27500 cable products are composed of mil spec inner conductors, single or double shields and single or double jackets. This milspec cable is ideal for use in aircraft and ground support equipment due to its ability to operate in a broad range of temperatures. In addition to being a defense and aerospace cable, this high performance, milspec cable is used in a wide range of general purpose electrical applications.
Specification:
Conductor Count: 4
Conductor Type: Nickel Plated High Strength Copper Alloy
Gauge: 24
Insulation: Cross-linked Modified ETFE
Outer Jacket: 23 - Extruded - Orange - Modified XLETFE
Shield: N - Single NPC Round
Supplier: Helistrand, Judd Wire, Marmon Aerospace & Defense, TE Connectivity
Temp: 200
Voltage Rating: 600
Part Number: M27500-24SN4N23
