24 AWG 4 Pair Cat5e Rip Cord CMR/CMX Outdoor Sunlight Resistant Cable Black 51-240-E1 1000 ft

Product Information

Specification

About :

The Category 5e CMR/CMX Outdoor Sunlight Resistant cable is specifically designed for extreme sunlight and temperature applications. The level of UV-blocking compounds is the same as in traditional Outside Plant (OSP) cable products with the black color preventing damage from long-term UV sunlight exposure.

CAT 5e CMR/CMX Outdoor Sunlight Resistant black premises cable has been tested and listed as UL 444 Sunlight Resistant compliant. This designation requires the cable to resist 720 hours of harsh UV and heat, which is more than twice the exposure time of the standard 300 hours required in the CMX Outdoor test.

Also Known as :

24 AWG Cable, 4 Pair Cable, 4 Pair Premises Cable, 24 AWG 4 pair, 4 Pair Cat5e Cable, Cat5e 4 Pair Cable, CAT5E Cable, Cat5e outdoor cable, Cat5e CMR/CMX, Cat5e Sunlight Resistant Cable.

Performance Compliance:

• UL 444
• CSA C22.2 No. 214-08
• UL 1581
• UL 1666
• ANSI/TIA-568.2-D
• ANSI/ICEA S-90-661-2012
• ANSI/TIA/EIA-570-B
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant

Applications:

• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• Wi-Fi – IEEE 802.11a/b/g/n

Benefits:

• 720 hour sunlight resistant specification
• CAT 5e performance
• Resists damp conditions that might weaken standard packages
• Provides remaining length of cable on reel
• No heavy metals; and no toxic components

Features:

• Combines indoor/outdoor applications into one product with the added feature of Sunlight Resistant black color jacket
• Exceeds UL 444
• Meets ANSI/TIA-568.2-D specification
• ColorTip Circuit Identification System
• Rip cord applied under jacket

Specifications:

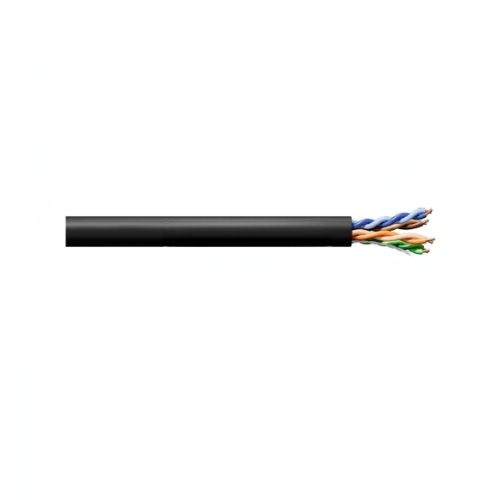

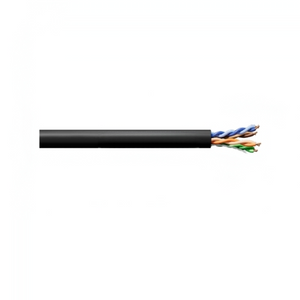

*Image is an illustration purpose only, may not reflect the exact color sold.
