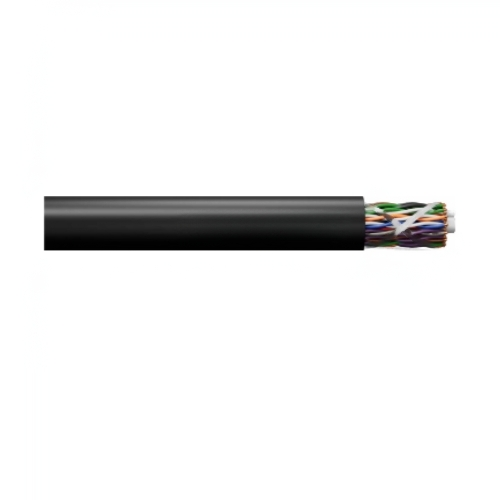

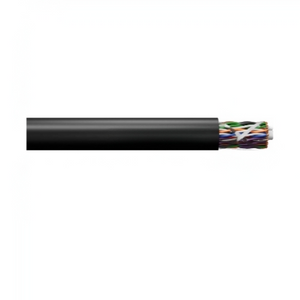

24 AWG 25 Pair Cat5e CM Indoor/Outdoor Tight Twisted Copper Cable Black 51-499-EL

Product Information

Specification

About :

25-Pair Power Sum Category 5e UTP cables are designed to provide support for both backbone and horizontal applications. These applications include inter-closet backbone links, equipment cabling between cross-connect and hub equipment and zone distribution horizontal cabling between wiring closets and multiple work area transition points. The cable is available in CMP and CMR ratings.

Also Known as :

24 AWG Cable, 25 Pair Cable, 25 Pair Premises Cable, 24 AWG 25 pair, 25 Pair Cat5e Cable, Cat5e 25 Pair Cable, CAT5E Cable, Cat5e Indoor/Outdoor.

Performance Compliance:

• UL 444
• CSA C22.2 No. 214-08
• ANSI/TIA-568.2-D
• ANSI/ICEA S-90-661-2012
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant

Applications:

• ADSL, VDSL, VDSL+ and VDSL+2
• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• ATM and token ring

Benefits:

• Handles tight installations
• Easier identification of conductors
• Provides full sunlight resistance and fire protection in a flexible jacket
• Non-nutritive to fungus and ideal for installation in humid environments
• Provides superior Alien Crosstalk performance for xDSL applications
• Allows installation at -20°C temperatures

Features:

• Small outside diameter
• Vibrant insulation colors
• Black, CM rated, non-halogen, OSP grade jacket material
• Fungus resistance
• Compliant to ANSI/TIA-568.2-D for CAT 5e
• Specially designed tight twist lays
• Low temperature bend performance

Specifications:
