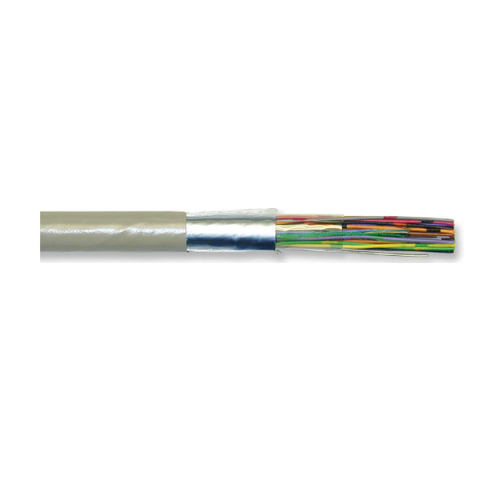

24 AWG 12 Pair CMR 100 Ohm PVC T112 Central Office Cable Gray 55-499-43
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
The T100 Series Central Office (CO) Cables are designed for use between switching and transmission equipment for distances up to 450 feet. They are manufactured with a longitudinal aluminum-polyester foil shield with aluminum facing the jacket for additional Electromagnetic Interference (EMI) reduction. The pairs are stranded together utilizing distinctive colored insulation in combination with markings of colored ink. The outer jacket is a gray flame retardant PVC. T100 series meets or exceeds all applicable requirements of Telcordia GR-137 specifications.
Also Known as :
12 Pair Count, 24 AWG Cable, 12 Pair 24 AWG, T100 Series Cable, Central Office Cable.
Performance Compliance:
• Telcordia GR-137-CORE
• ASTM B33 - Tinned Copper
• UL 444
• CSA C22.2 No. 214-08
• UL 1666
• RoHS-compliant/RoHS 2-compliant
Applications:
• T1/DS1
• T1C/DS1C
Benefits:
• Suitable for horizontal and riser installations
• Impedance mismatch with OSP cable is minimized
• Added ease of jacket removal
• Easy pair identification
Features:
• 24 AWG tinned copper conductors
• CMR listed
• Solid PVC insulation
• 100 Ohm nominal Impedance
• Longitudinal aluminum/ polyester foil shield with aluminum facing the jacket
• Rip cord
• Band marked conductors
Specifications:
| Pair Count | 12 |
| Conductor Size | 24 AWG |
| Conductor | Tinned Copper |
| Nominal Diameter | 0.34 inch / 8.6 mm |
| Attenuation | 7.2 dB/kft |
| Insulation | PVC |
| Shield | Aluminum/polyester foil |
| Mutual Capacitance Nominal |
20 pF/ft |
| Jacket | Gray, PVC |
| Characteristic Impedance @ 1 MHz Ohms | 100 ± 15 |
| Standard Length | 6644 feet |
| Package | Reel |
| Part Number | 55-499-43 |
