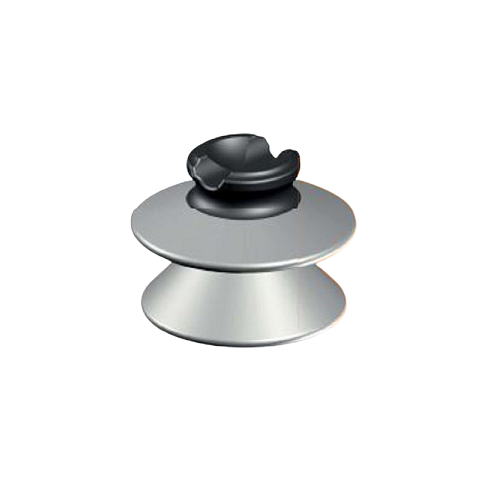

23 kv High voltage Pin insulators 8226-70

Product Information

Specification

About

Pin type insulators are designed to provide line support. The function of these insulators is to support the conducting cable directly on the head or neck of the insulator (top and side grooves).

Pin type insulators are designed and manufactured according to ANSI standard (C29.6) to ensure their electrical and mechanical performance, as well as to satisfy all dimensional specifications and requirements. We offer low and medium voltage pins, and are used in distribution lines ranging from 7.2kV to 34 Kv.

These insulators are also offered with a semi-conductive glaze, generally used to homogenize the field generated by the electrical path through the conductor that may cause radio interference.

Pin type insulators are mounted on metallic cross arms, wood cross arms or directly on the post.

Specification:

ANSI CLASS (C29.5) : 55-7
Dry arcing distance : 8"
Leakage distance : 15"
Minimum pin height : 7-1/2"
Cantilever strength : 3000
Typical application voltage : 23
Low-frequency dry flashover : 100
Low-frequency wet flashover : 50
Critical impulse flashover - positive : 150
Critical impulse flashover - negative : 170
Low-frequency puncture voltage : 135
Low-frequency test voltage/RMS to ground/kV : 22
Maximum RIV at 1000 kHz, μν : 100

Note 1 : ANSI 70 gray is standard. Brown or white a vailable by request
Note 2 : Conductive Glaze - applied to head, side wire grooves and pin hole for one-piece units
Note 3 : Neck Sizes - "C" & "F" according to industry standards
Note 4 : Pin Hole Sizes - Standard 1" to 15 kV and ref. 320275R-70, 1-3/8" for the rest of 23 kV & 35 kV units

Images are only for References
