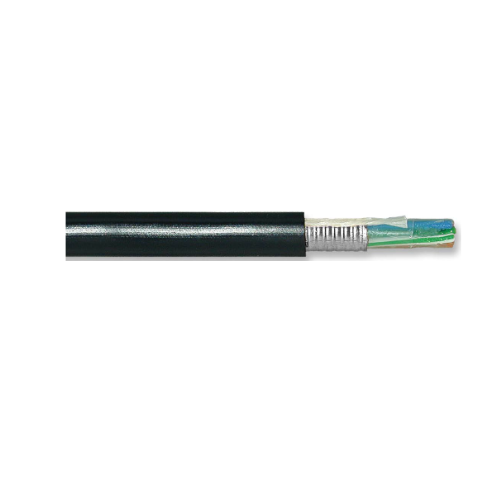

22 AWG 6 Pair Polyolefin PVC Jacket Buried Wire Aluminum Filled (BW AF) Cable 25-667-86 Coil

Product Information

Specification

About :

The Buried Wire Aluminum Filled (BW AF) cable is designed for direct burial applications and is available in 2, 3, 5 and 6 pair sizes. It is filled with an ETPR compound which is chemically and electrically compatible with all other materials in the wire. The compound completely coats each insulated conductor and fills the space between conductors.

A black, weather-resistant polyvinyl chloride jacket is extruded over the shield and rip cord to protect the core from minor mechanical damage, degradation by sunlight and ingress of moisture and water.

Rip cord: Rip cord applied over shield and beneath jacket
Core Assembly: Individual conductor dimensions are tightly controlled to limit resistance unbalance of twisted pairs; pair twist lays are varied to minimize crosstalk and meet capacitance unbalance limits
Filling Compound: Wire core is completely filled with 80°C ETPR compound, filling the spaces between insulated conductors
Shield: Corrugated 6-mil (2-pair/3-pair) or 8 mil (5-pair/6-pair) bare aluminum tape longitudinally applied over the core wrap

Also Known as :

6 Pair Cable, 22 AWG Cable, Buried Wire Cable, BW AF Cable, BWAF Cable, PVC Jacket Burial Cable.

Performance Compliance:

• Telcordia GR-3163-CORE
• ANSI/ICEA S-86-634-2011
• RoHS-compliant

Benefits:

• Protects the core and provides improved mechanical and electrical characteristics
• Provides a moisture barrier and inhibits corrosion
• Facilitates jacket removal

Features:

• Non-hygroscopic core wrap
• Adhesive compound floods shield’s outer surface
• Rip cord
