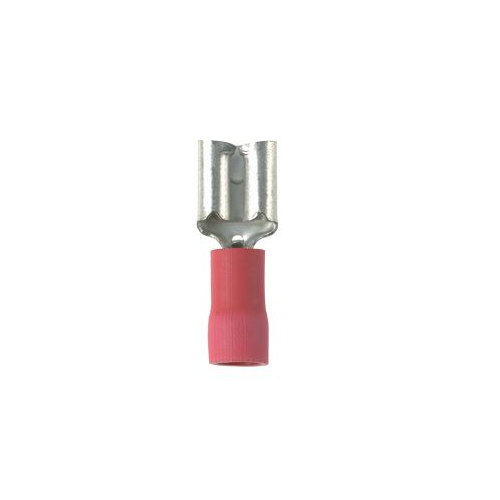

22-18 AWG Pan-Term Female Disconnect Grip Sleeve Vinyl Barrel DVF18-188-MY (Pack of 1000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
The "22-18 AWG Pan-Term Female Disconnect Grip Sleeve Vinyl Barrel DVF18-188-MY (Pack of 1000)" is a package of electrical connectors specifically designed for creating detachable points in electrical wiring.
Also Known As:
• Female Quick Disconnects
• Vinyl-Insulated Crimp Terminals
• Spade Terminal Connectors
• Red Female Disconnects (indicative of the wire gauge color-coding)
Common Applications:
• Automotive wiring, for easily removable connections to switches, sensors, and accessories.
•Consumer electronics, allowing for quick assembly and servicing.
•Control panels in industrial settings, to facilitate easy changes and maintenance.
•Power supplies, for creating detachable power connections.
•HVAC controls and thermostats, where quick disconnection is needed during repair or testing.
Standards Met:
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Construction:
• A copper crimp barrel, which ensures a secure mechanical and electrical connection to the wire.
• Vinyl insulation, which provides a level of environmental protection and is also color-coded for easy identification.
• A female disconnect design, which allows for easy connection to and disconnection from a male counterpart.
• A grip sleeve that enhances the terminal's grip on the wire, adding to the connection's reliability.
Features:
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
• UL Flammability UL 94V-0, maximum insulation temperature 194°F (90°C)
• UL and CSA rated up to 300 V per UL 310
Specification:
| Disconnect Type: | Female Disconnect |
| Insulation Material: | Vinyl |
| Insulation Type: | Barrel Insulated |
| Maximum Copper Conductor Size (AWG): | #18 |
| Maximum Wire Size (AWG): | #18 |
| Minimum Wire Size (AWG): | #22 |
| Minimum Copper Conductor Size (AWG): | #22 |
| Wire Strip Length: | 1932-09-01 In. (7.1 mm) |
| Tab Size: | 0.187 x 0.032 In. (4.8 x 0.8 mm) |
| Base Material: | Brass |
| Finish/Coating: | Tin-Plated |
| Color Code: | Red |
| Barrel Type: | Funnel |
| Insulation Diameter: | 0.14 In. (3.5 mm) |
| Maximum Operating Temperature: | 90 °C (194 °F) |
| Sub Brand: | Pan-Term |
| Maximum Metric Conductor Size (mm²): | 1 |
| Minimum Metric Conductor Size (mm²): | 0.5 |
| Maximum Wire Insulation Diameter: | 0.14 In. (3.5 mm) |
| Overall Height: | 0.1 In. (2.5 mm) |
| Overall Length: | 0.76 In. (19.3 mm) |
| Overall Thickness: | 0.16 In. (0.4 mm) |
| Overall Width: | 0.23 In. (5.8 mm) |
| Tongue Angle: | Straight |
| Packaging Type: | Box |
| Product Type: | Disconnect |
| Maximum Voltage (kV): | 0.3 |
| For Use With: | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part No: | DVF18-188-MY |
