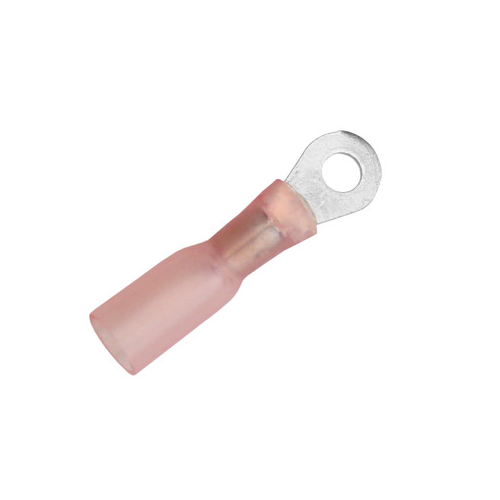

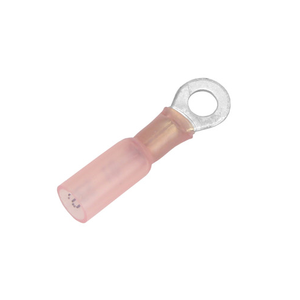

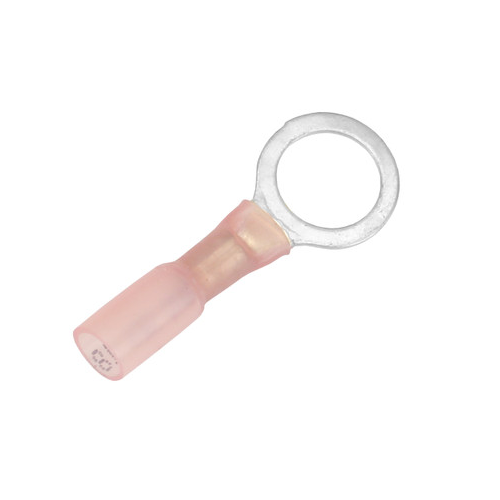

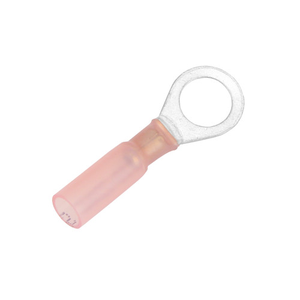

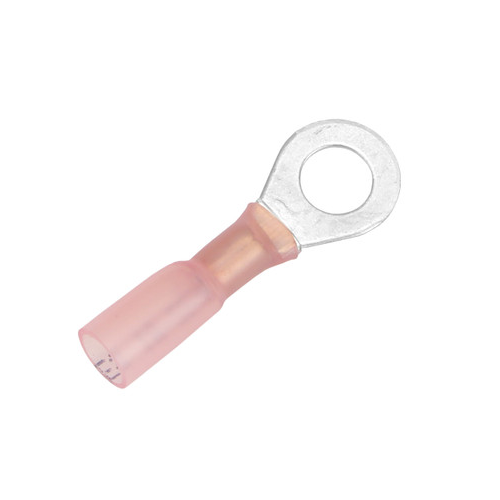

22-18 AWG Heat Shrink Ring Terminals
Also Known As:
Ring Terminals, Terminals & Connectors, Tinned Copper, Electrodeposited Tin, Red Insulation Color
About:
Red Ring terminals are used to create lasting electrical connections. By using ring terminals, you no longer have to worry about the connector pulling off. The ring fits snuggly over a screw or stud and will not pull loose as other terminals can. Red ring terminals are for use with 22-18 AWG wire. They offer long-term protection and ease of installation. 22-18 AWG ring terminals come in a variety of insulation types. Non-insulated ring terminals are the economical choice. They are used in applications where specific installation characteristics are not needed. Nylon ring terminals offer rugged construction making them very durable. They are known for their high-performance quality as well as their protection against stress. Vinyl ring terminals are for use where an insulated barrel is a necessity. Vinyl ring terminals carry an insulated sleeve of color-coded PVC. This sleeve is tapered to the barrel permanently. Heat shrink terminals protect against the elements in the harshest environments. They are used to create moisture proof barriers which protect the electrical connection. These heat shrink terminals were designed with a heat activated liner. This adhesive liner provides an environmentally sealed connection for wires from 22-18 AWG. Selecting the correct insulation can sometimes seem daunting.
Construction:
• Voltage Rating: 600-V
• Dielectric Strength: 900-V/mil
• Vol. Resistivity: 1015 Ohm-cm3
• Operating Temp: -55 °C - 125 °C
• Shrink Ratio: Approx. 3:1 at 135 °C
Standards::
• UL
• CSA
• RoHS
• ELV (nylon, vinyl, and non-insulated only)
Features:
• Available in nylon, vinyl, non-insulated or heat shrink
• Tin-plated ETP copper for corrosion resistance (nylon, vinyl, and non-insulated only)
Specifications:
• Wire Gauge: 22-18 AWG
• Insulation Types: Heat Shrink
• Insulation Color: Red
• Base Material: Tinned Copper
• Voltage Rating: 600-V
• Part Number: TE18-R-25
Download PDF Spec Sheet
