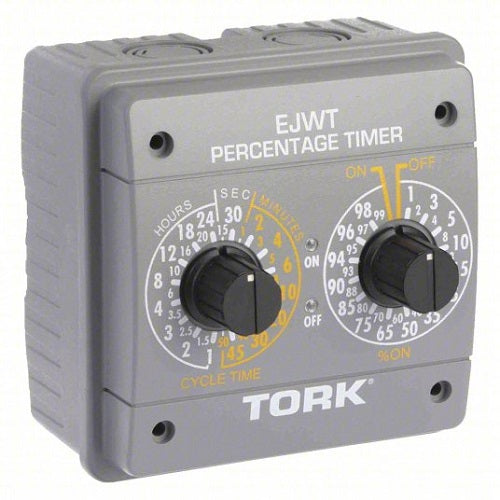

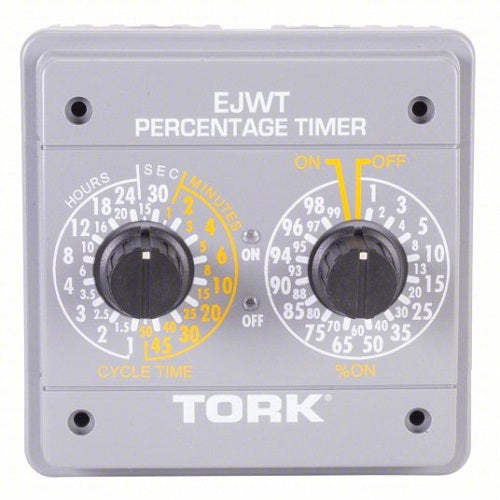

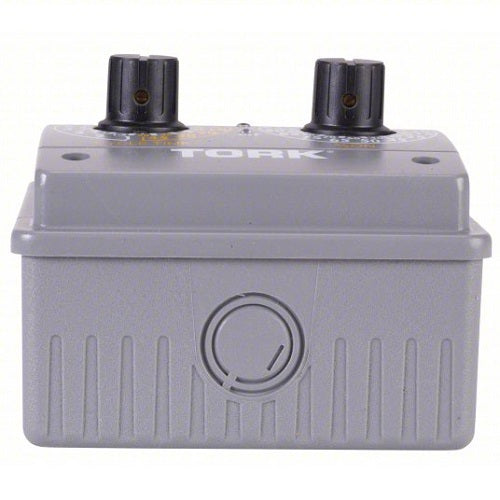

20Amp Time Setting Percentage Cycle Timer EJWT
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
A Percentage Cycle Timer is a specialized timer used to control the on/off cycle of electrical devices by allowing users to set the percentage of time the device remains on during each cycle. Unlike standard timers that specify exact time intervals, a percentage cycle timer allows for proportional control based on the total cycle duration, making it ideal for applications requiring precise control over energy usage or process efficiency.
Also Known As :
Cycle Timer, On/Off Timer, Time Relay, Adjustable Cycle Timer, Duty Cycle Controller, Periodic Timer, Percentage Cycle Timer
Specification :
| Number of Poles | 1 |
| Product Type | Percentage Cycle Timer |
| Input Voltage | 120/240V AC |
| HP @ 120V | 1 hp |
| HP @ 240V | 2 hp |
| Amps | 20 A |
| Min. Time Setting | 15 sec |
| Max. Time Setting | 24 hr |
| Mounting | Surface |
| Contact Type | SPDT |
| Standards | UL, CSA, California Title 24 Compliant |
| NEMA Rating | 4X |
| Length | 4-1/2 in |
| Width | 4-1/2 in |
| Depth | 4 in |
Features :
• The timer operates by allowing users to define a percentage of time the connected device stays on during each cycle, optimizing power usage.
• Commonly used in heating, ventilation, and air conditioning (HVAC) systems, lighting control, pump systems, and industrial equipment.
• Users can set both the total cycle time and the on-time percentage, allowing for flexible and customized operation.
• Offers straightforward setup and adjustment, typically through dials, switches, or digital input interfaces.
