Product Information
Specification
| Type | 5 mm Passive Voltage |
| Bandwidth | 200 MHz |
| Attenuation | 100x |
| Risetime | 1.8 ns |
| IEC Rating | 2,000 V CAT II |
| Compensation | 10−30 pF |
| Humidity | 85% RH or less (at 35° C) |
| RoHS 2 | Compliant |
| Part No. | GE3225 |

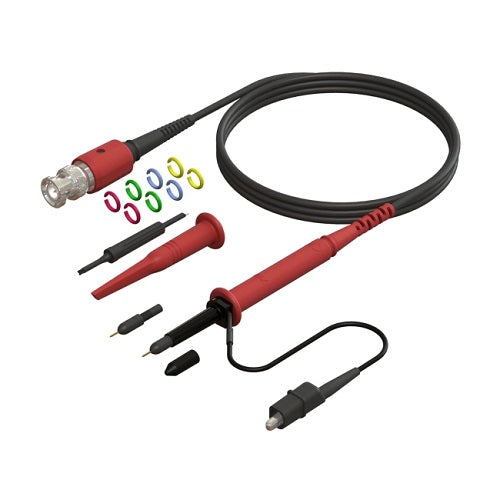

200 MHz Oscilloscope Probe GE3225 (Pack of 2)
Description:
Model GE3225 is a high voltage, high accuracy 100x passive voltage probe with a 100 MΩ input impedance. The low voltage coefficient (VCR) allows for a 1% accuracy at high voltage measurements.
• 200 MHz (-3 dB) bandwidth
• High impedance input (100 MΩ/≈5 pF)
• 2,000 V CAT II
• Voltage Coefficient (VCR) ≤0.5 ppm/V
Features & Benefits:
• Slim, stylish body
• Snap-Locking Sprung Hook
• Easily replaceable tip
• Large accessory set
• Meets IEC 61010-031
• RoHS 2 compliant
The GE Series is a high quality, easy to use family of 5 mm Passive Voltage Oscilloscope probes in stylish, slim-line bodies. The series features superior input impedances for enhanced measurement performance when compared to other oscilloscope probes.
The series is marketed under the time-honored Elditest brand name in both North America and the European Union.
