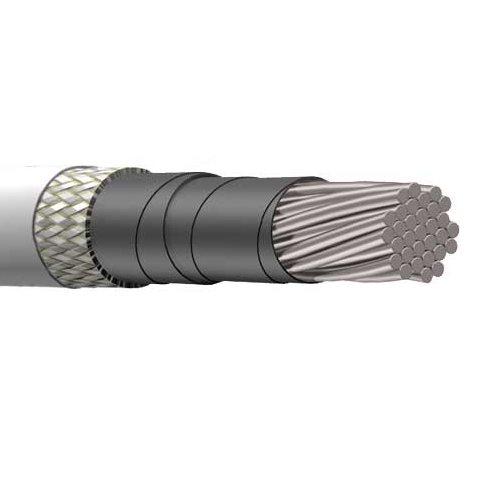

20 AWG 19/32 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable M25038/3-20

20 AWG 19/32 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable M25038/3-20

Allowable Ampacity for 20 AWG 19/32 Stranded Nickel Coated Copper PTFE 260°C 600V Aerospace Cable M25038/3-20: 100 Amps

Applications:

• Critical circuit aerospace applications where wires must operate in extremely harsh environments, under vibration, and maintain electrical integrity for a short time under direct flame exposure during emergency conditions

Also Known as :

M25038/3 Cable, Military Wire, High-Temperature Wire, Polyester Braid Cable, Silver Coated Cable, Mil-Spec cable, Aircraft Cable

Description :

• 22 - 20 AWG: 27% nickel-coated high-strength copper alloy
• 18 - 12 AWG: 27% nickel-coated copper
• Inner insulation: Inorganic dielectric
• Outer insulation: PTFE-coated fiberglass barrier
• Operating temperature: -55°C to +260°C
• Voltage rating: 600 volts

Specification :

• AWG: 20
• Stranding: 19/32
• Nom. Diameter of Conductor: 0.038 inches
• Nom. O.D: 0.055 inches
• Weight: 0.0095 lbs
• Part Number: M25038/3-20
