2" X 4 1/2" Schedule 80 Seamless Black Nipples And Fittings 59165SMLS

Product Information

Specification

Description:

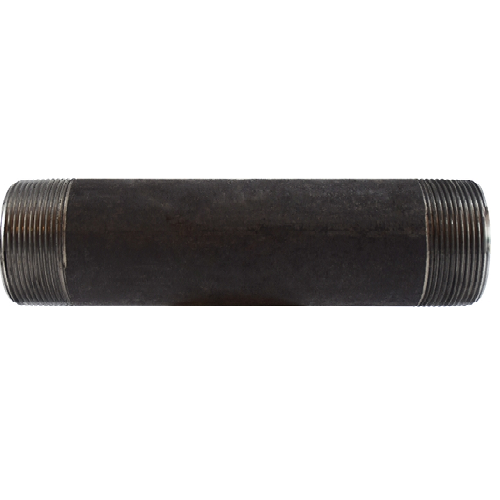

2 X 4 1/2 SCHEDULE 80 SEAMLESS BLACK NIPPLE

Features:

Unless otherwise specified
◑ welded nipples ASTM A 53 are furnished on orders for steel nipples in standard and extra strong sizes 1⁄8" – 8" NPS (6 – 200 DN).

Welded steel nipples
◑ (A 53 Type F or Type E) are available in standard and extra strong sizes 1⁄8" – 8" NPS (6– 200 DN), right-hand threads, black or galvanized.

Seamless nipples
◑ manufactured for the U.S. and International markets are not phosphate coated. ◑ Seamless nipples manufactured for Canada are phosphate coated.

Seamless steel pressure tube nipples
◑ (ASTM A 106 Grade B) are available in standard and extra strong sizes 1⁄8"– 8" NPS (6 – 200 DN) with right-hand threads, black only.

Right and left
◑ steel nipples are available in standard and extra heavyweight sizes 1⁄8" – 4" NPS (8 – 50 DN), in 4" (102mm) and 6" (152mm) lengths.

Nipples
◑ Nipples are available from stock in 1⁄8" – 8" NPS (6 – 200 DN) diameter, close to 12 NPS (300 DN) in length. Sizes 13" – 24" NPS (325 – 600 DN). (Prices on application.) Steel pipe nipples meet ASTM A733. 1 ⁄8" Schedule 40 and 80 galvanized nipples are all electroplated.

Identification
◑ Where possible, each seamless pipe nipple is identified with
the following:
◑  A trademark
◑ The seamless designation “SMLS”
◑ Pipe schedule 40, 80, 160, XXS
◑ Material designation
◑ Heat number for traceability

Specifications :

Dimensions: ASTM A733 (See table below for standard sizes)

Threads: NPT per ASME B1.20.1

Material: ASTM A106 Grade B Seamless Pipe ASTM A333 Grade 6 Seamless Pipe (For Canada only)

Finish: ASTM A106 Nipples Black or Hot Dip Galvanized ASTM A333 Nipples Phosphate Coated or Zinc Electroplated
