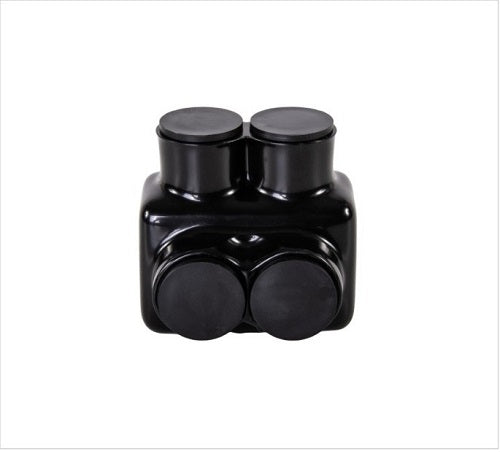

2-Port Black Multi-Tap Pre-Insulated Connector, 500 MCM – 4 AWG, Bag IT-500B

Product Information

Specification

2-Port Black Multi-Tap Pre-Insulated Connector, 500 MCM – 4 AWG, Bag IT-500B

Description

Polaris Black Multi-Tap Connectors form secure connections between
multiple conductors with a rounded design and UV-resistant insulation
coating. Installs with a hex key and torque wrench, with no need for cover
and taping.
Dual-Side Wire Entry: Form secure connections between 2 conductors
quickly using the double-sided entry ports sized for wires between 500
MCM and 4 AWG Suitable for use on the line side of the service
equipment as per the NEC article 230.46 requirement.
Ergonomic Design: Rounded corners and a smooth exterior finish over
the plastisol insulation make Polaris connectors comfortable to grip
Removable Plugs: Each port and adjustable set screw is covered by a
secure plug to prevent debris, moisture or contaminants from entering
the insulated connector
Pre-filled Oxide Inhibitor: Both dual-side entry ports come pre-filled
with an oxide inhibitor gel to prevent corrosion and provide low-
contact resistance
Professional Performance: The durable layer of insulation on each
Polaris connector is UV, abrasion and chemical-resistant for reliable
performance
