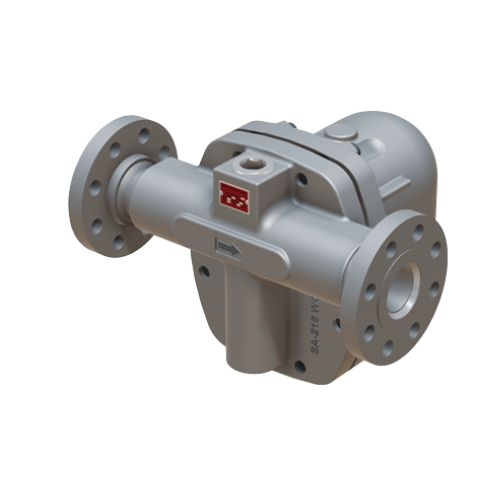

2 Inch Series Float And Thermostatic Steam Trap with Stainless Steel FT601-450-17-F600

Product Information

Specification

• FT601 Series steam traps (available in sizes 3/4" - 2") feature a robust Stainless Steel Body and in-line repairable connectors, making them ideal for high-pressure steam applications or environments requiring stainless steel construction.
• These traps are commonly used in chemical plants and petrochemical refineries for applications such as re-boilers, heat exchangers, and other critical process systems.
• With excellent air-handling capability, float and thermostatic traps provide a more efficient alternative to bucket traps for applications requiring quick system start-up.
• The FT601 Series supports a maximum steam pressure of 450 PSIG.

Also Known As:

FT601 Series F&T Steam Trap, FT601 Series Float And Thermostatic Trap, FT601 Series In-Line Repairable F&T Trap, High-Pressure Float And Thermostatic Steam Trap, FT601 Series Float And Thermostatic Steam Trap.

Specification:

Features:

• Investment cast steel body and cover with class 400 shell rating (670 PSIG @ 750 °F)
• Hardened stainless steel seat and disc for extended service life even at extreme temperatures and pressures
• Excellent air handling capability allows air to be discharged rapidly so steam can enter the system quickly during start-up
• In-line repairability is simplified by having all internals attached to the cover. Studded cover allows for easier removal of body.
• Welded stainless steel air vent resists shock from waterhammer. Live orifice air vent is available for superheated applications
• F&T traps discharge condensate immediately as it is formed (no condensate will back up into the system)
