2 Fiber Riser OM4 Teraflex BR 50/125µm Fiber Optical Interconnect Cable Zip Aqua C3002PG01

Product Information

Specification

About:

Simplex, Duplex and Quad Optical Fiber Interconnect Cables are typically used for patch cords and intrabuilding installations. These cables designed for environments where small size, flexible construction and flame resistance are required. These cables are available in both riser and plenum versions. Higher performance optical fibers are offered, including bend insensitive G.657.A1 single mode and 10G/300 OM3 and 10G/550 OM4 laser optimized 50 μm multimode.
The design consists of flexible tight buffer material extruded over the fiber to a diameter of 900 μm for use with standard connectors. Dielectric yarns are applied for additional strength and a flame retardant PVC jacket covers the strength members. Appropriate materials are used to achieve an OFNR (riser) or OFNP (plenum) rating. Standard 2.9 mm and small form factor 2 mm diameters are available for simplex and duplex designs.

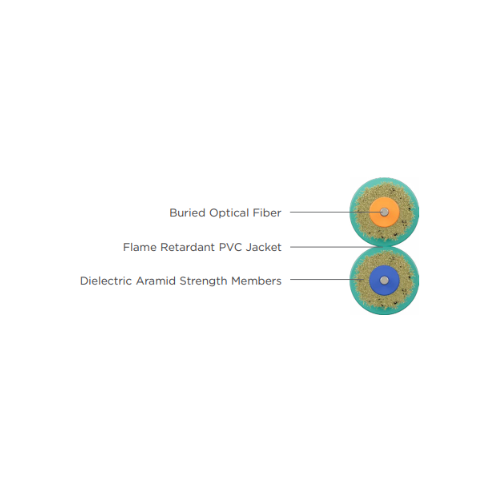

Configuration: Flexible tight buffered optical fibers surrounded by aramid yarns and
covered by a flame retardant jacket.

Also Known as:

2 Fiber Riser Cable, Flame Retardant PVC Jacket, Multimode PVC, Riser Cable, Non-Plenum Cable, Optical Fiber Cable, 10G Cable, om4 multi fiber cable.

Benefits:

• Meets all the requirements for both standard and small form factor connectors for “in-front-of-the-shelf” applications
• Perfect for in-wall and “behind-the-shelf” applications
• Adjustable tension control on reel prevents over spin and entangling of cable

Features:

• Simplex and duplex zip cord designs in 2 mm and 2.9 mm diameters
• Round, duplex and quad designs
• BrakeBox payout control system

Specifications:

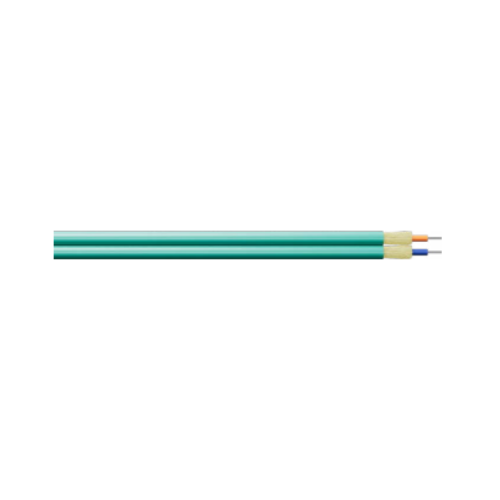

*Image is an illustration purpose only, may not reflect the exact color sold.
