2/0 AWG Loose Piece Ring Terminal S2/0-56R-C (Pack Of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

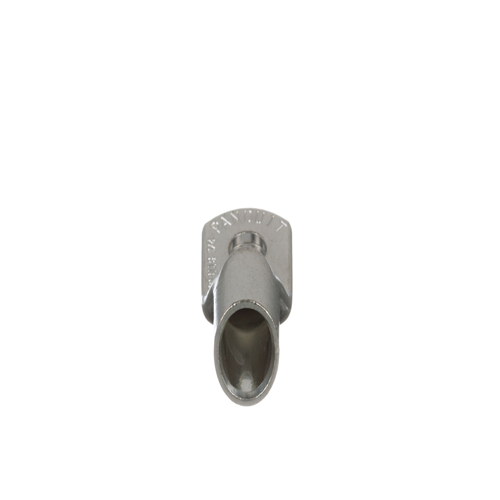

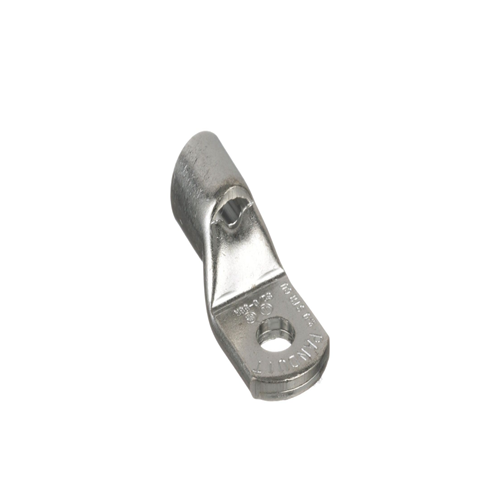

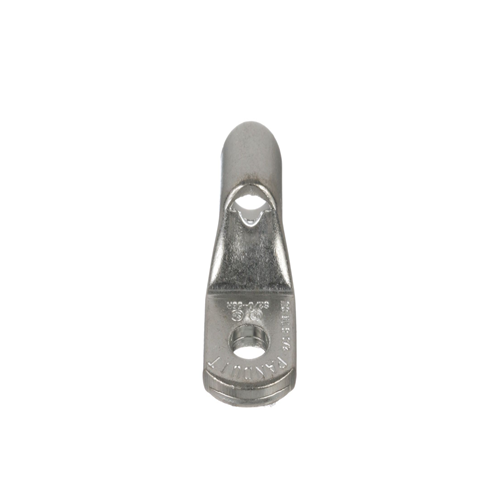

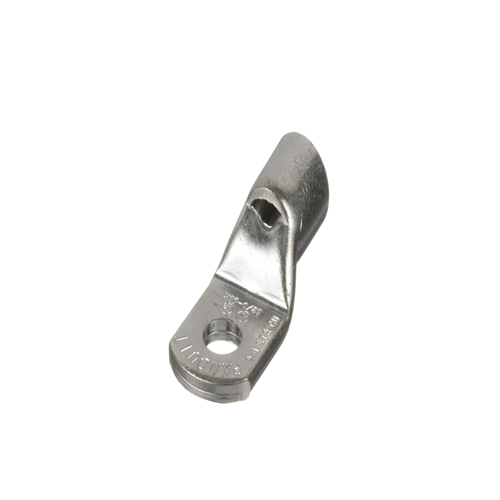

Tubular Ring Terminal, 2/0 AWG, 5/16 stud size, non-insulated, bulk package.
Specification :
| Stud Hole Size (In.) | 5/16 |
| Insulation Material | Non-Insulated |
| Maximum Wire Size (AWG) | 2/0 AWG |
| Wire Strip Length (In.) | 11/16 |
| Wire Strip Length (mm) | 17.4625 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Barrel Type | Seamless Tubular |
| Barrel Length (In.) | 0.66 |
| Barrel Length (mm) | 16.8 |
| Sub Brand | Pan-Lug |
| Overall Length (In.) | 1.9 |
| Overall Length (mm) | 48.3 |
| Overall Width (In.) | 0.85 |
| Overall Width (mm) | 21.6 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Packaging Type | Loose Piece |
| Product Type | Ring Terminal |
Features :
• Seamless tubular barrel provides a consistent high performance quality crimp, Round double thick toungue for reliable power applications, Barrel of terminal internally beveled to provide quick and easy wire insertion, Inspection window allows visual inspection of proper wire insertion.
