About:
RG-6 coaxial cables with a 60% shield are engineered to support analog, digital, and high-bandwidth technologies. They adhere to strict tolerances regarding cable diameter, ensuring compatibility with the specifications of leading connector manufacturers.
Also Known as:
18 AWG Cable, Coax Cable, Coaxial Cable, 18 AWG Coax Cable, RG6 Coax Cable, Coax RG6 Cable, Coax RG-6 Cable, Copper Clad Cable, CM Listing.
Performance Compliance:
• UL 444
• UL 1685
• NFPA 262
• ANSI/SCTE 74-2003
• RoHS-compliant/RoHS 2-compliant
Applications:
• HDTV and CATV
• Two-way cable modems
• Extended bandwidth satellite service
Benefits:
• “Future-proofing” the installation
• Exhibits better transmission characteristics
• Helps differentiate incoming service versus internal cabling infrastructure
Features:
• RG-6, 60% Shield Coaxial cable with bandwidth that exceeds 3 GHz
• Tight foamed polyethylene insulating skin bonds around center conductor
Specifications:

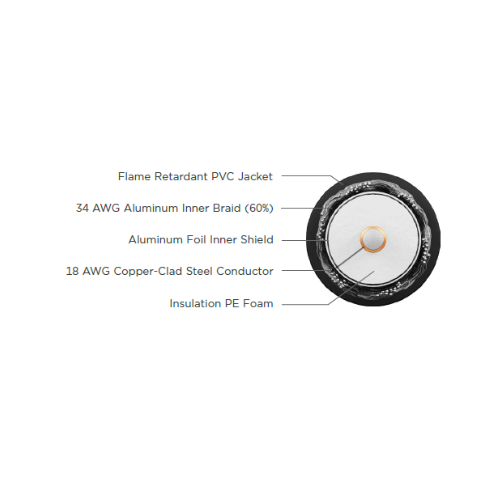

| Conductor Size | 18 AWG |
| Conductor | Copper clad steel |
| Nominal Diameter |
Inner Shield: 0.18 in / 4.6 mm Overall: 0.28 in / 7.1 mm |
| Inner Braid | 34 AWG aluminum (60%) |
| Inner Shield | 2.8 mil aluminum foil |
| Insulation | Foam PE |
| Jacket | Flame retardant PVC |
| Characteristic Impedance Ohms | 75 |
| Nominal Velocity of Propagation % | 85 |
| Jacket Color | White |
| Package | 1,000' POP Box |
| Part Number | 78-107-9P |

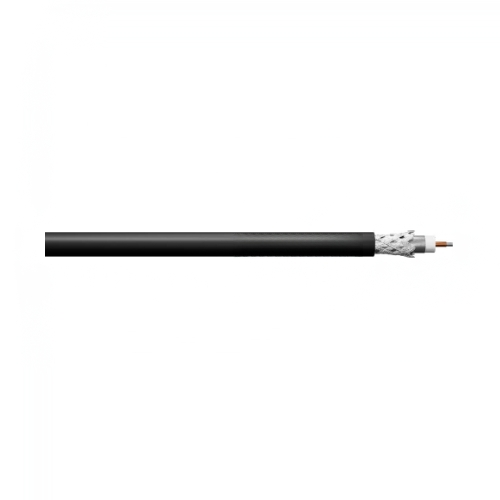

*Image is an illustration purpose only, may not reflect the exact color sold.
